Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: wooden box package
Delivery Time: 45-60 days
Payment Terms: T/T
Supply Ability: 20 units/month
It adopts an inclined bed structure, which features strong rigidity, smooth chip removal and excellent seismic resistance. The model features a novel appearance, is compact and exquisite, and has a compact structure. It is equipped with high-speed, high-precision and highly automated feeding functions, and is easy to operate. It is an ideal choice for processing small and precise parts.
|

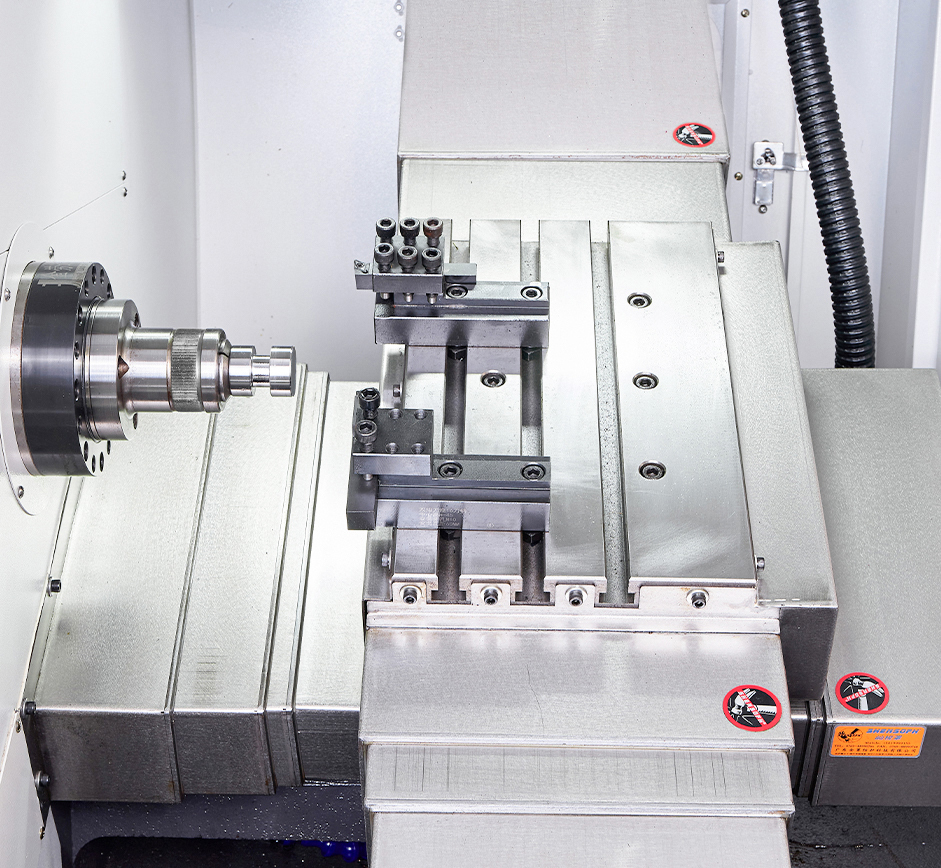

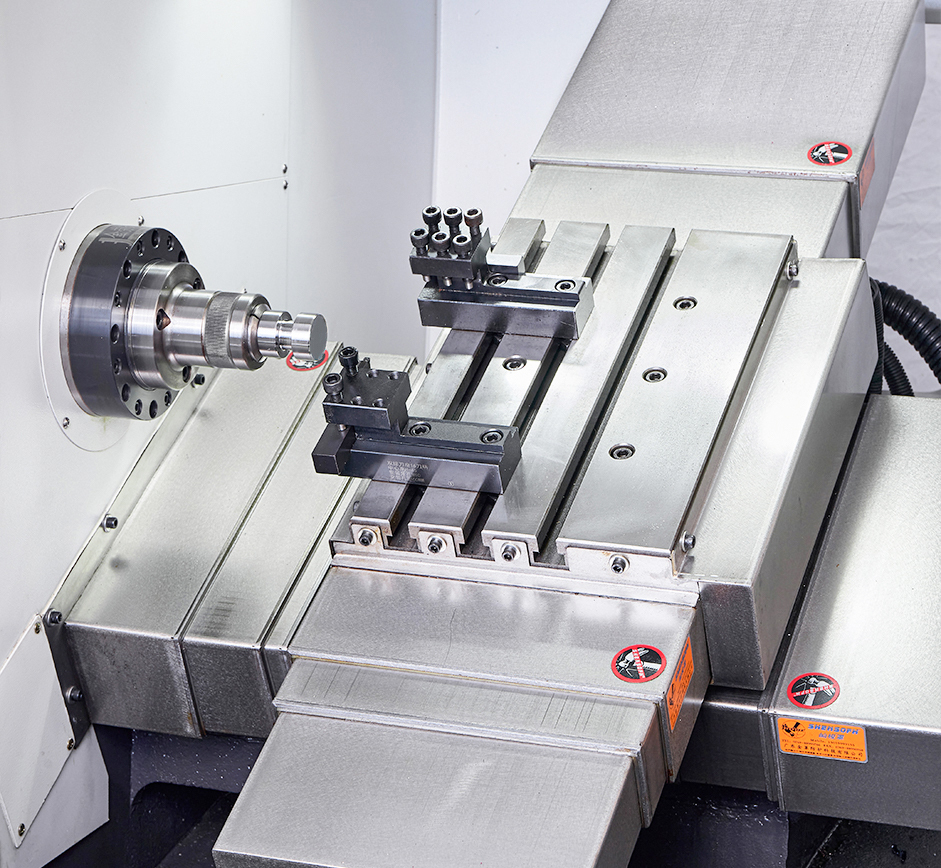

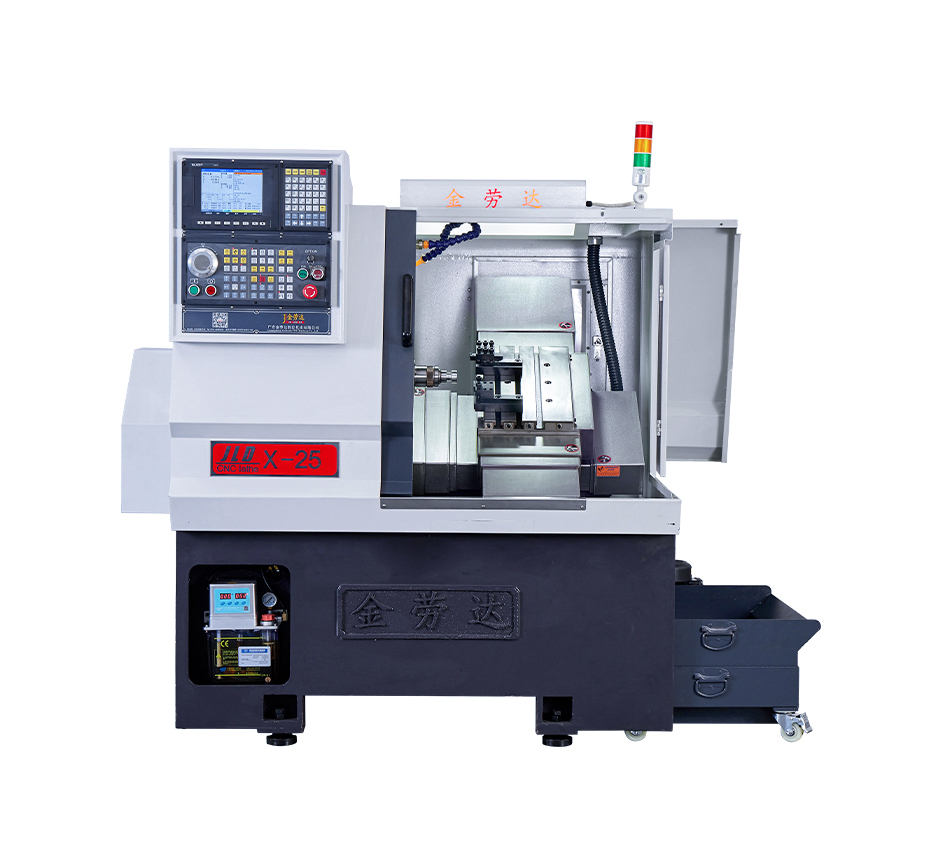

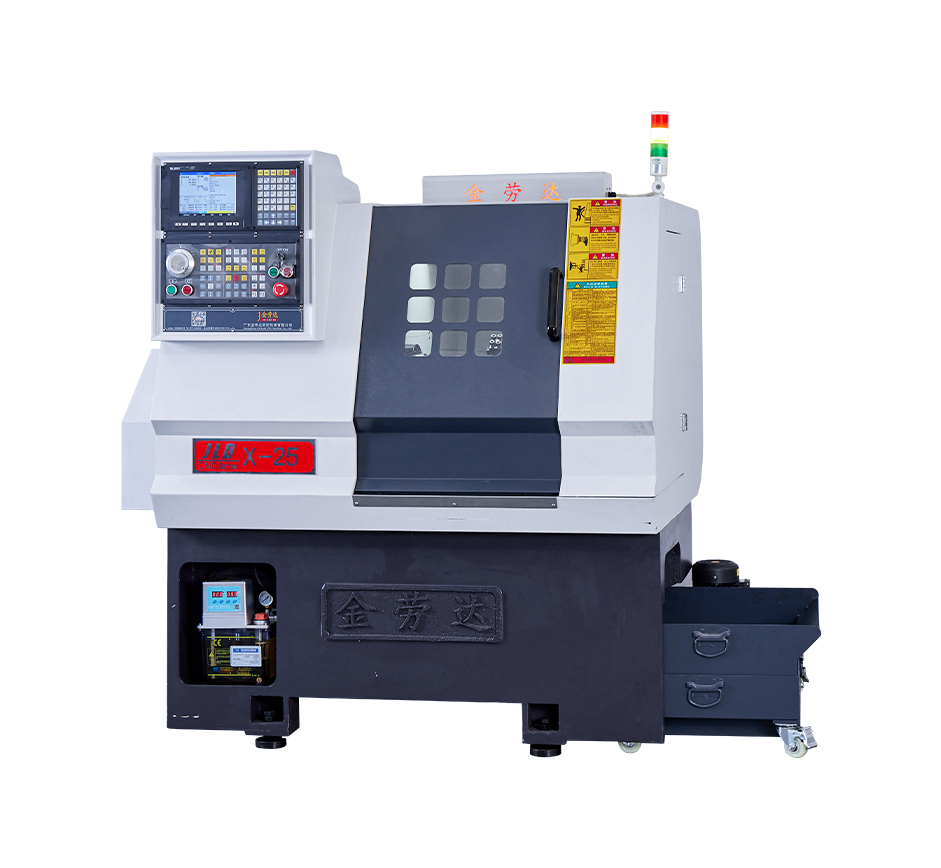

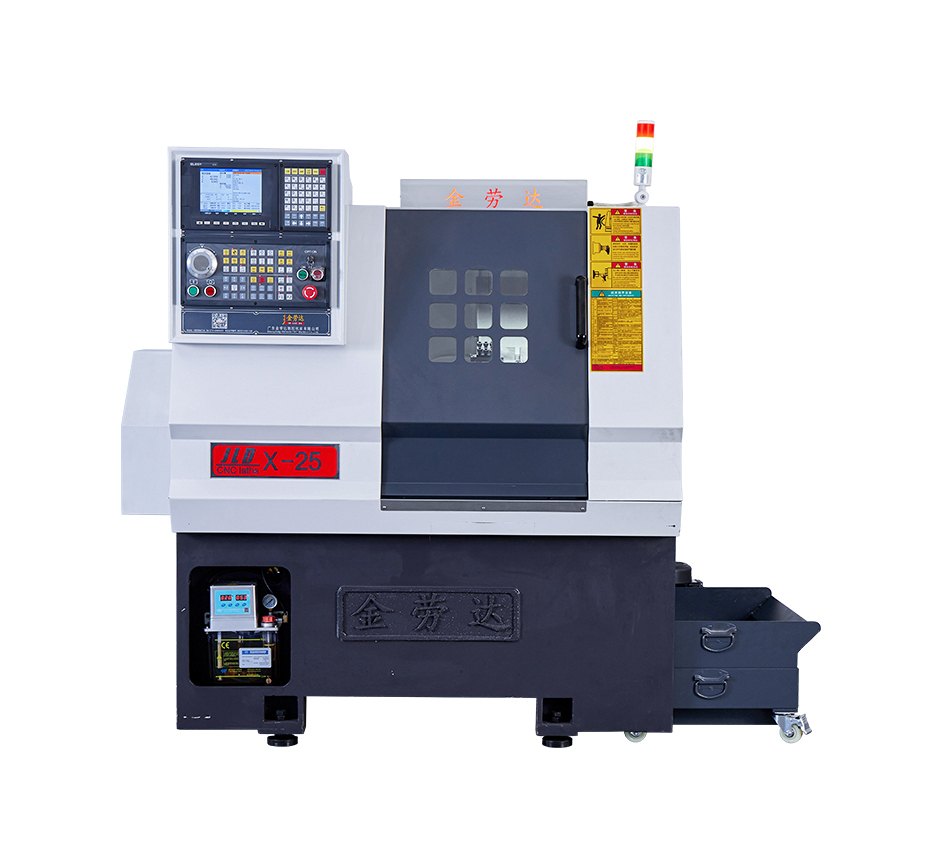

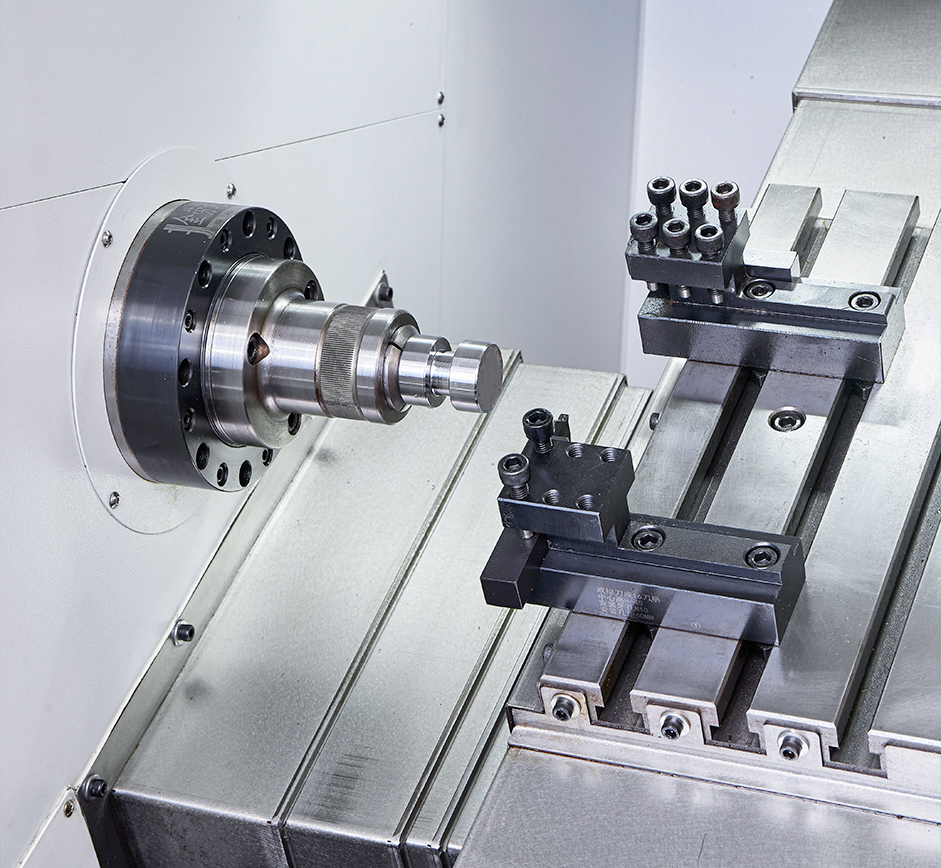

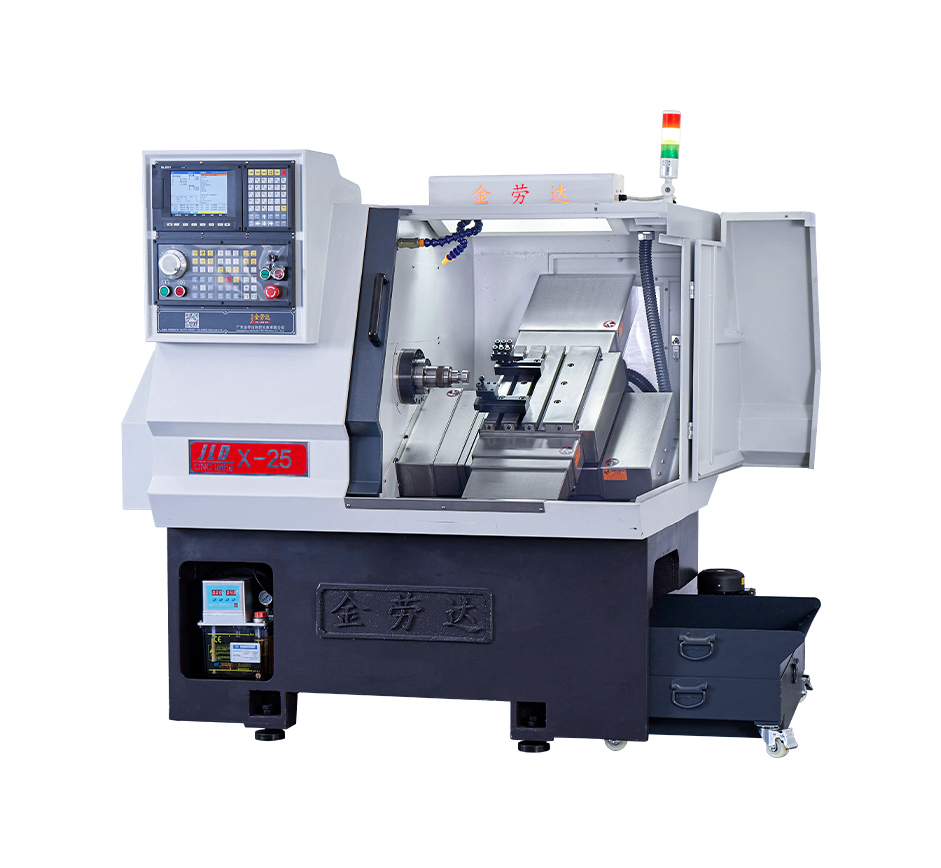

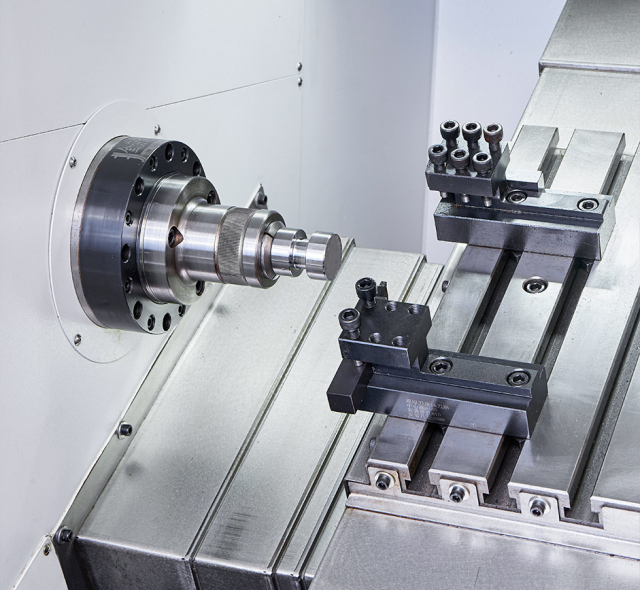

LDS-25X Slant Bed CNC Lathe Parameters
|
||||
|
Serial number
|
Item
|
Unit
|
25X
|
|
|
1
|
Barrel spindle unit through hole
|
mm
|
Φ36
|
|
|
2
|
Maximum swing diameter over bed
|
mm
|
Φ150
|
|
|
3
|
Spindle
|
Spindle nose type
|
A2-4
|
|
|
4
|
Maximum spindle speed
|
r/min
|
5000
|
|
|
5
|
Spindle set speed
|
r/min
|
1-4000
|
|
|
6
|
Maximum bar through-hole diameter
|
mm
|
Φ20
|
|
|
7
|
Tool mounting type
|
mm
|
Linear tool arrangement
|
|
|
8
|
Height from linear tool to spindle center
|
mm
|
45
|
|
|
9
|
Lead screw and guideway protection method
|
Semi-protected
|
||
|
10
|
Height from spindle center to floor
|
mm
|
1010
|
|
|
11
|
Lathe bed inclination
|
Degree
|
Flat bed/35°
|
|
|
12
|
X-axis effective travel
|
mm
|
500
|
|
|
13
|
Z-axis effective travel
|
mm
|
180
|
|
|
14
|
X/Z axis rapid traverse setting speed
|
mm
|
20/24
|
|
|
15
|
X-axis lead screw diameter & pitch
|
mm
|
2508/3210
|
|
|
16
|
Z-axis lead screw diameter & pitch
|
mm
|
2508/3210
|
|
|
17
|
X-axis linear guideways
|
mm
|
20/30
|
|
|
18
|
Z-axis linear guideways
|
mm
|
20/30
|
|
|
19
|
Overall dimensions (L×W×H )
|
mm
|
1560*1450*1650
|
|
|
20
|
Net weight
|
KG
|
1500
|
|
|
21
|
Roundness of machined workpiece
|
mm
|
0.003
|
|
|
22
|
Machining accuracy
|
mm
|
0.012
|
|
|
23
|
Cylindricity of machined workpiece
|
mm
|
0.012/200
|
|
|
24
|
X/Z-axis repeat positioning accuracy
|
mm
|
0.012
|
|
|
25
|
X/Z-axis absolute positioning accuracy
|
mm
|
0.012
|
|
|
26
|
Accuracy class of guideways
|
mm
|
H
|
|
|
27
|
C3
|
|||
|
28
|
≤0.015
|
|||
|
29
|
0.0025
|
|||
|
30
|
Accuracy class of lead screw
|
mm
|
C3
|
|
|
31
|
Collet taper runout
|
mm
|
≤0.015
|
|
|
32
|
Spindle radial runout
|
mm
|
0.0025
|
|
Electronics & Communication: Mobile phone/router components, fiber optic connector ferrules, precision screws, connector pins.
Medical Devices: Surgical instrument parts, endoscope components, micro-syringe heads, implant screws.
Automotive Electronics: Sensor housings, micro-motor shafts, spark plug parts, small connectors.
Daily Hardware: Watch case/band components, pen tips, jewelry accessories, eyeglass hinges.
