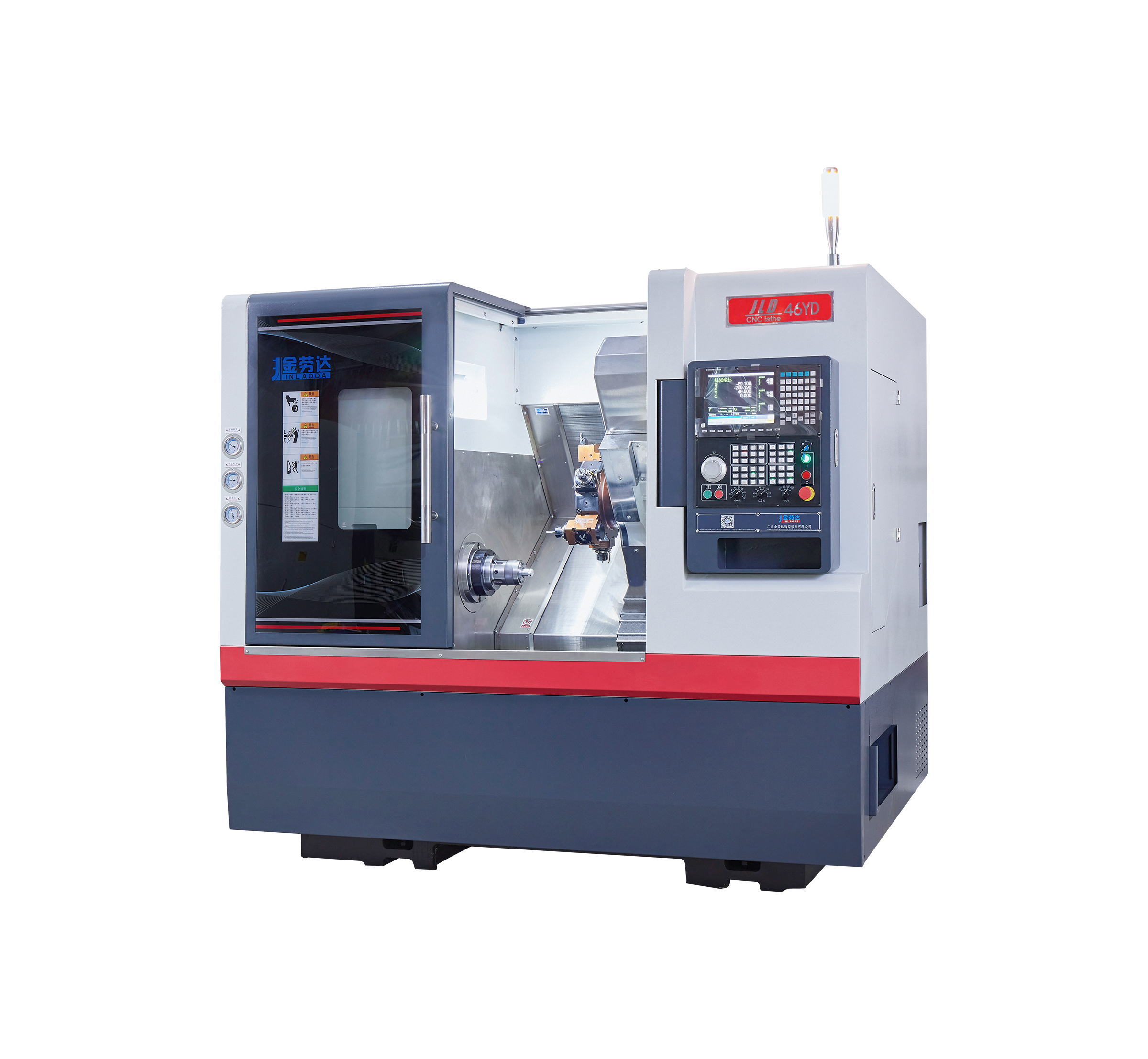

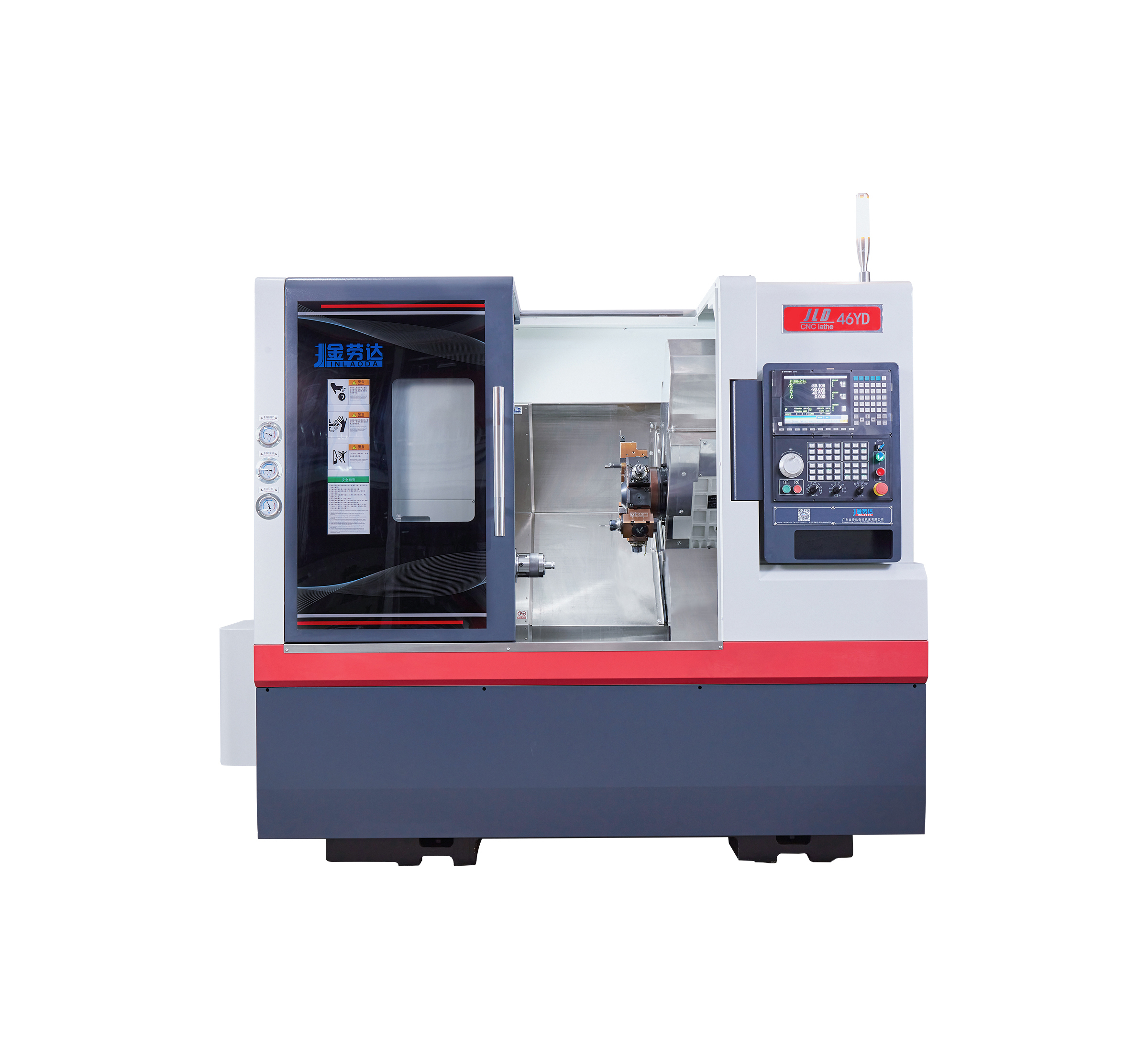

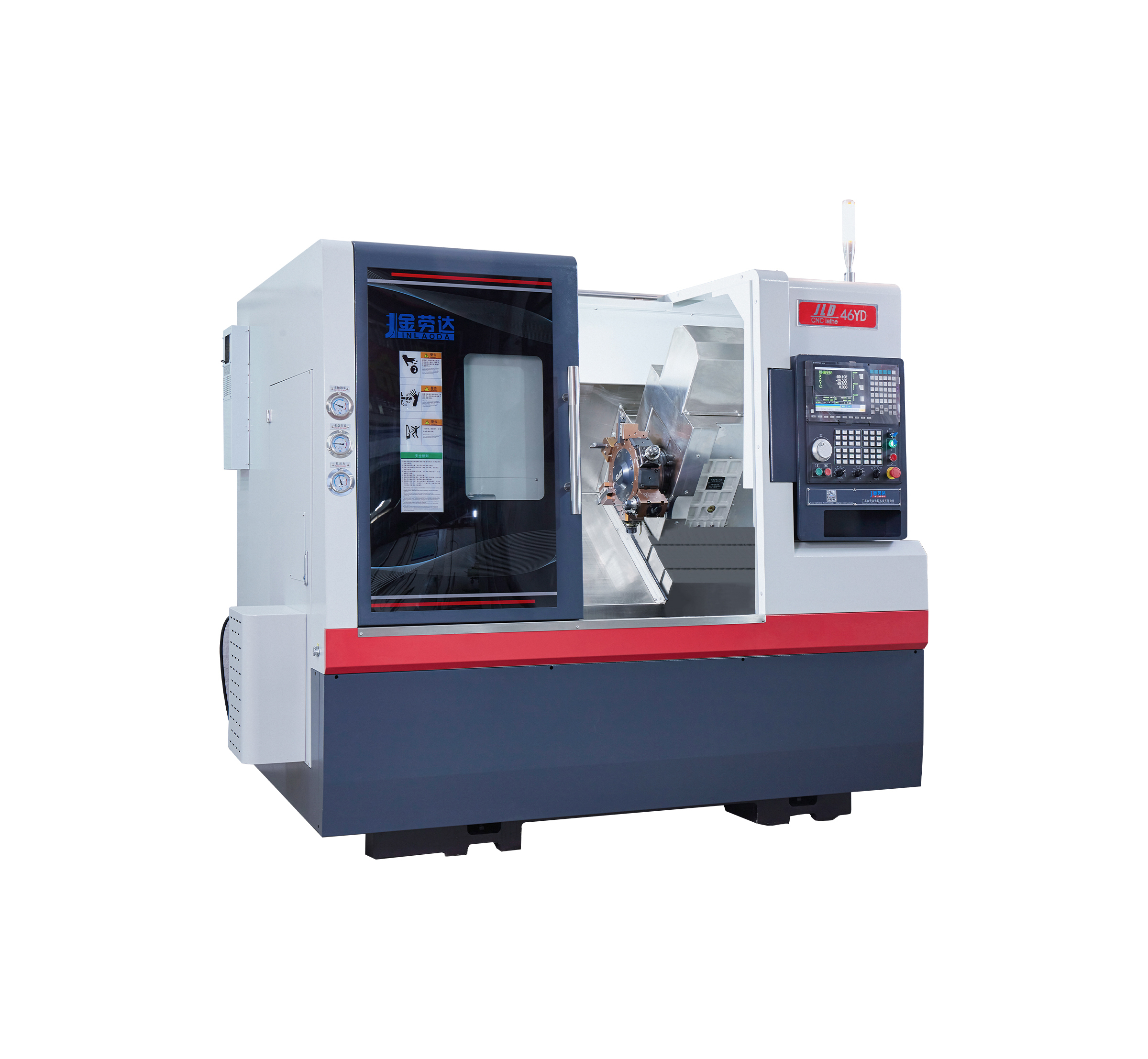

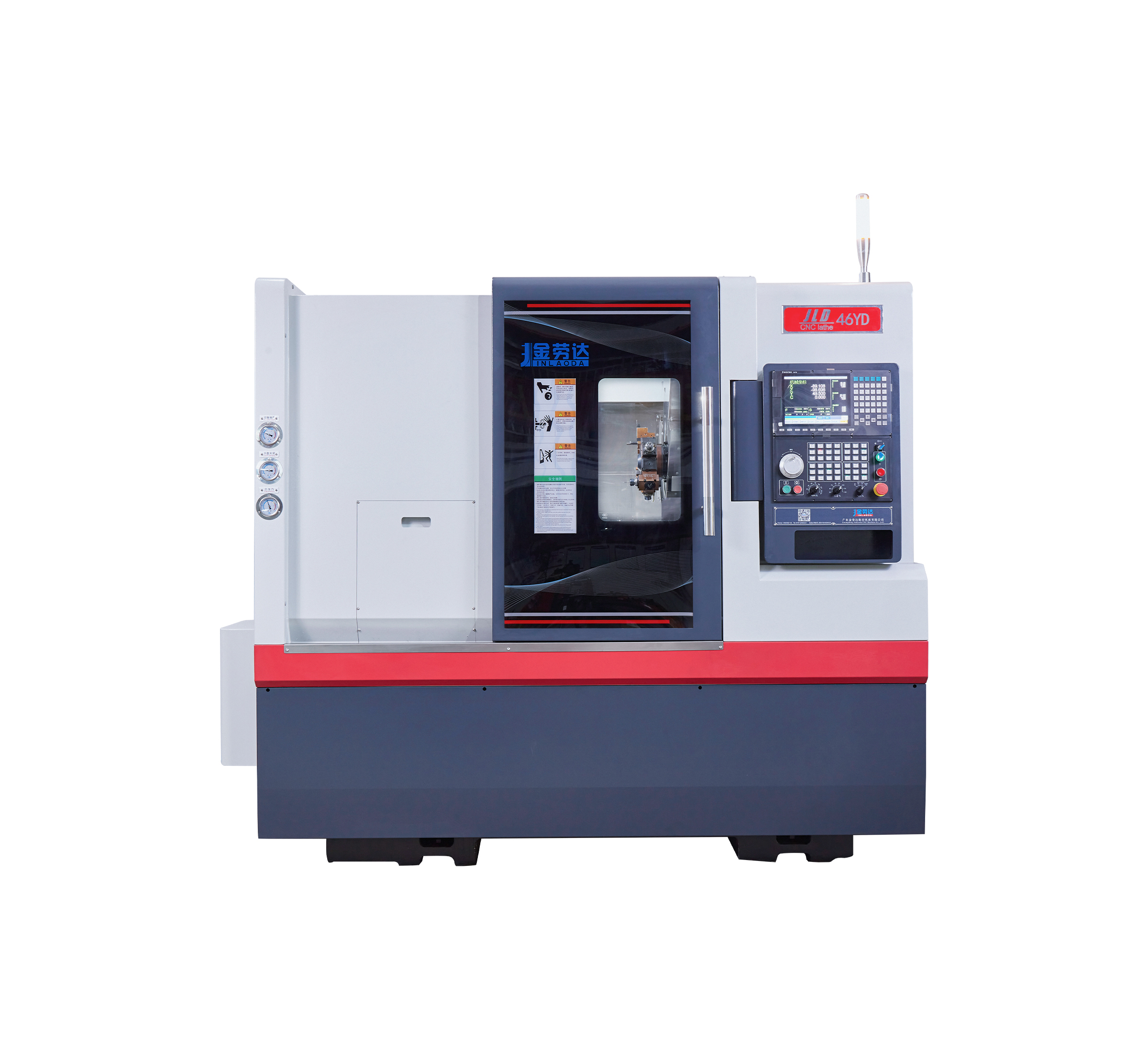

Name: LDS-46 52YD-H12 Power Turret CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46 52YD-H12
Availability: InStock
Rating: 5 (1 reviews)

Specification

The powerful 6-axis linkage function, combined with the power tool turret, makes the equipment more powerful, highly precise and easy to be maintained. It is suitable for processing large or complex parts. It can complete processes such as turning, milling, drilling, tapping and boring in one clamping. It also has engraving functions and can be used as a small drilling and tapping center.

LDS-46 52YD-H12 Power Turret CNC Lathe Parameters
Serial number	Item	Designation	46YD	52YD
1	Spindle	Mechanical Spindle	Φ56	Φ66
2		Maximum bar through-hole diameter mm	Φ45	Φ51
3		Spindle nose type	A2-5	A2-6
4		Maximum spindle speed rpm	6000	4000
5		Hydraulic three-jaw chuck	6-8 Inch
6		Disdance from spindle center to floor mm	1040mm
7		Distance from spindle center to front door mm	460
8	Machining range	Maximum swing diameter over bed mm	550mm
9		Maximum swing diameter over the slide mm	350MM
10		Maximum machining diameter (for Disc-type workpieces) mm	Φ400
11		Maximum machining length of workpiece mm	400mm
12	Stroke and maximum feed rate	X-axis effective travel （radius） mm	220mm
13		Z-axis effective travel mm	450mm
14		X/Z-axis rapid traverse rate	30m/min
15	Machining accuracy	X/Z-axis repeat positioning accuracy mm	±0.003
16		X/Z-axis positioning accuracy mm	±0.005
17	Machine structure and accessories specifications	Bed structure type	High-low rail 35°
18		X-axis linear guide specification mm	720-35 Roller
19		Z-axis linear guide specification mm	960-35 Roller
20		X-axis lead screw diameter & pitch (mm)	646-Φ3210
21		Z-axis lead screw diameter & pitch (mm)	812-Φ3210

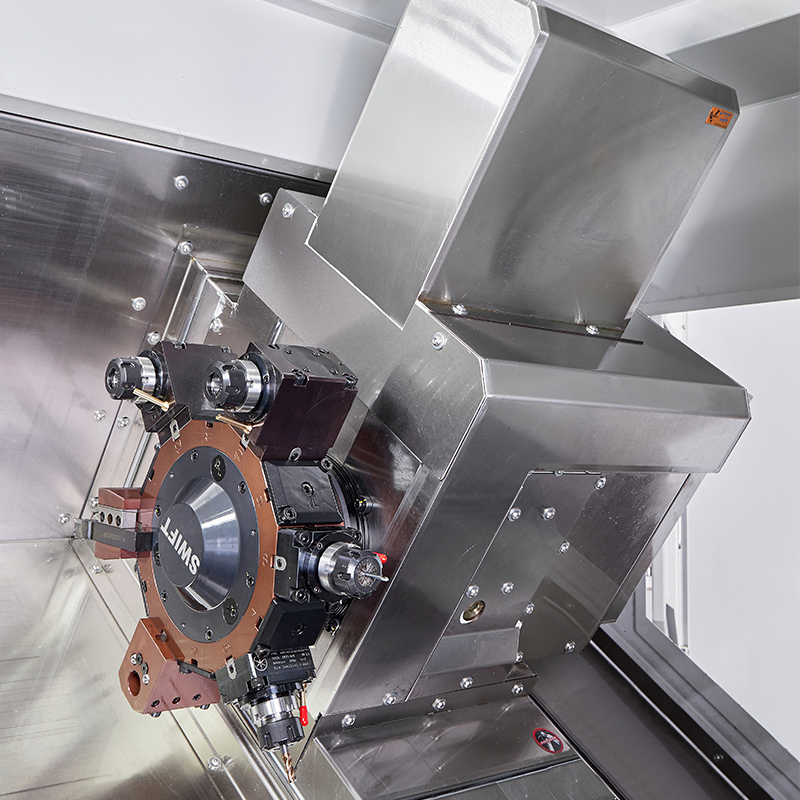

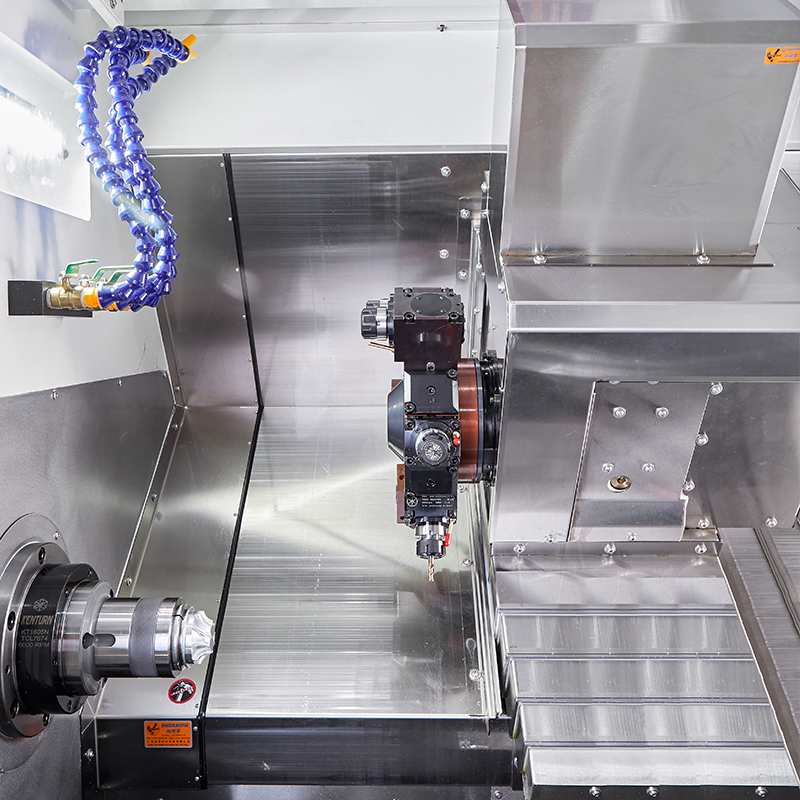

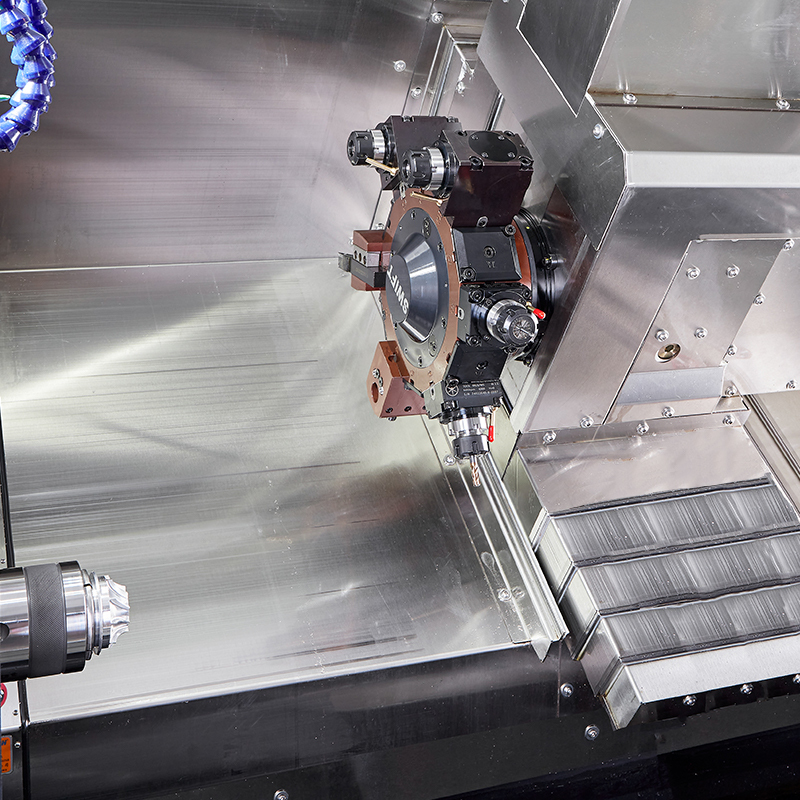

22	Turret specification	Power turret model number	BMT45 Hardened guideway
23		Power turret (tool position) / pieces	12
24		Square/round turret specifications mm	□20*20、￠25
25		Turret center height mm	170
26		ool turret Y-axis travel (mm)	±50
27	Overall dimensions	L×W×H mm	2450x1950x2050
28		Net weight KG	3200

High-Precision CNC Lathe with Advanced Turret Technology
The Jinlaoda CNC lathe machine features a powerful CNC lathe turret for quick and accurate tool changes, significantly reducing setup time and increasing overall productivity. The turret allows for the use of multiple tools without needing to manually change them between operations. This high level of automation ensures that parts are produced with minimal error and consistent quality. Whether you're working on custom parts or high-volume production, the CNC lathe machine offers reliability and precision. With its user-friendly interface and durable design, it provides unmatched efficiency for a wide range of machining applications.

Durable Design and Flexible Functionality
Built for high performance and long-lasting use, the CNC lathe machine features robust components and a stable structure, ensuring reliable operation even under heavy workloads. Its flexible design supports various machining tasks, including turning, threading, and drilling, making it suitable for industries such as automotive, aerospace, and heavy machinery. The CNC lathe turret plays a key role in maintaining smooth operation, as it can support multiple tool positions to handle different types of cutting and machining tasks with ease. This adaptability enhances the machine's versatility, allowing businesses to take on a wider range of projects.

Optimized for High-Volume Production
With its ability to perform multiple operations in one setup, the CNC lathe machine is ideal for high-volume production environments. The CNC lathe turret facilitates rapid tool changes, minimizing downtime between operations and improving throughput. This system is particularly useful for manufacturers who need to produce large quantities of parts quickly and efficiently. By reducing the need for manual tool changes and minimizing operator intervention, the CNC lathe machine ensures fast production cycles without compromising on precision or quality.

Product Advantages

Enhanced Efficiency with CNC Lathe Turret
The CNC lathe turret in this machine is specifically designed to enhance machining efficiency. It allows for the use of multiple tools during a single operation, eliminating the need to manually swap out tools and reducing setup times. This feature is particularly beneficial for production environments where time is critical and multiple processes need to be executed in rapid succession. By streamlining the entire process, the CNC lathe machine helps reduce labor costs and boost productivity, making it an ideal choice for businesses focused on increasing output.

Precision and Accuracy in Every Operation
The CNC lathe machine provides high levels of precision and repeatability, ensuring that every part meets strict quality standards. The machine's advanced control system, combined with the CNC lathe turret, enables accurate tool positioning for complex and detailed operations. Whether it’s a simple part or a complex design, the machine’s high-precision capabilities ensure that parts are produced with tight tolerances. This level of accuracy makes the CNC lathe machine suitable for industries that require detailed work, such as aerospace, automotive, and medical manufacturing.

Reduced Downtime and Increased Productivity
The CNC lathe machine is engineered to minimize downtime and maximize productivity. The CNC lathe turret allows for fast and efficient tool changes, ensuring that production runs smoothly without interruptions. The system’s flexibility also allows operators to switch between different tools and operations without losing valuable time. By reducing manual intervention and streamlining the machining process, the CNC lathe machine helps businesses achieve faster turnaround times and greater production efficiency.

Use Scenarios

Automotive Manufacturing and Custom Part Production
In the automotive industry, precision is crucial for producing high-quality components that meet strict safety and performance standards. The CNC lathe machine with its CNC lathe turret is ideal for automotive manufacturers who require high-precision parts such as engine components, brackets, and housings. The ability to perform various machining tasks in one setup reduces the need for additional machinery and streamlines production. With rapid tool changes and accurate machining, the CNC lathe machine enhances productivity while maintaining quality, making it an essential tool in automotive manufacturing.

Aerospace Component Manufacturing
The CNC lathe machine is designed to meet the demands of the aerospace industry, where high-precision components are required for safety and performance. The CNC lathe turret ensures that multiple operations, such as turning, drilling, and threading, can be performed on a single machine, reducing production times and ensuring accuracy. The machine’s ability to work with tight tolerances makes it an ideal choice for producing complex aerospace parts such as turbine components and structural elements. With its flexible capabilities, the CNC lathe machine ensures that manufacturers can meet the stringent quality requirements of the aerospace sector.

High-Volume Production for Heavy Machinery
In industries that require the production of heavy machinery parts, the CNC lathe machine offers the durability and precision needed for large-scale manufacturing. The CNC lathe turret allows for multiple tool setups, enabling operators to perform a variety of operations on large parts without needing to reconfigure the machine. Whether it’s machining large metal components or producing intricate details, the CNC lathe machine ensures that every part is produced efficiently and accurately. This makes it the ideal choice for industries such as construction, mining, and industrial equipment manufacturing.

About Us

Jinlaoda is a leading manufacturer of high-precision CNC lathe machines, serving industries worldwide with durable and efficient solutions for their machining needs. With over a decade of experience in the CNC manufacturing industry, we specialize in providing CNC lathe machines that offer advanced features, precision, and versatility. Our products, including the CNC lathe turret, are designed to meet the diverse needs of industries such as aerospace, automotive, and medical manufacturing.

Our commitment to quality is evident in our rigorous manufacturing processes and the use of state-of-the-art technology in our CNC machines. We focus on providing solutions that help our customers achieve high efficiency, precision, and cost-effectiveness in their production processes. Our research and development team is constantly working to improve the design and functionality of our products, ensuring that Jinlaoda remains a leader in the CNC lathe industry. We offer comprehensive support, from installation and training to ongoing maintenance, ensuring that our customers can maximize the potential of their CNC lathe machines.

FAQ

What types of industries can benefit from Jinlaoda's CNC lathe machines?
Jinlaoda's CNC lathe machines are used in a variety of industries, including automotive, aerospace, and heavy machinery manufacturing, where precision and efficiency are critical.

How does the CNC lathe turret improve productivity?
The CNC lathe turret allows for rapid tool changes, reducing setup times and improving the overall efficiency of machining processes. This leads to faster production cycles and higher output.

Can Jinlaoda's CNC lathe machines handle high-volume production?
Yes, the CNC lathe machine is designed for high-volume production, offering fast tool changes and minimal downtime to ensure continuous operation in demanding environments.

What maintenance is required for the CNC lathe machine?
Jinlaoda’s CNC lathe machines require minimal maintenance, with periodic checks on the turret and other key components to ensure optimal performance. Regular maintenance helps extend the machine's lifespan.

Do you provide training for operators?
Yes, we offer training for operators to ensure they can effectively use the CNC lathe machine and get the most out of its features, such as the CNC lathe turret.

Increase your production efficiency with a high-performance CNC lathe machine – Order now!
