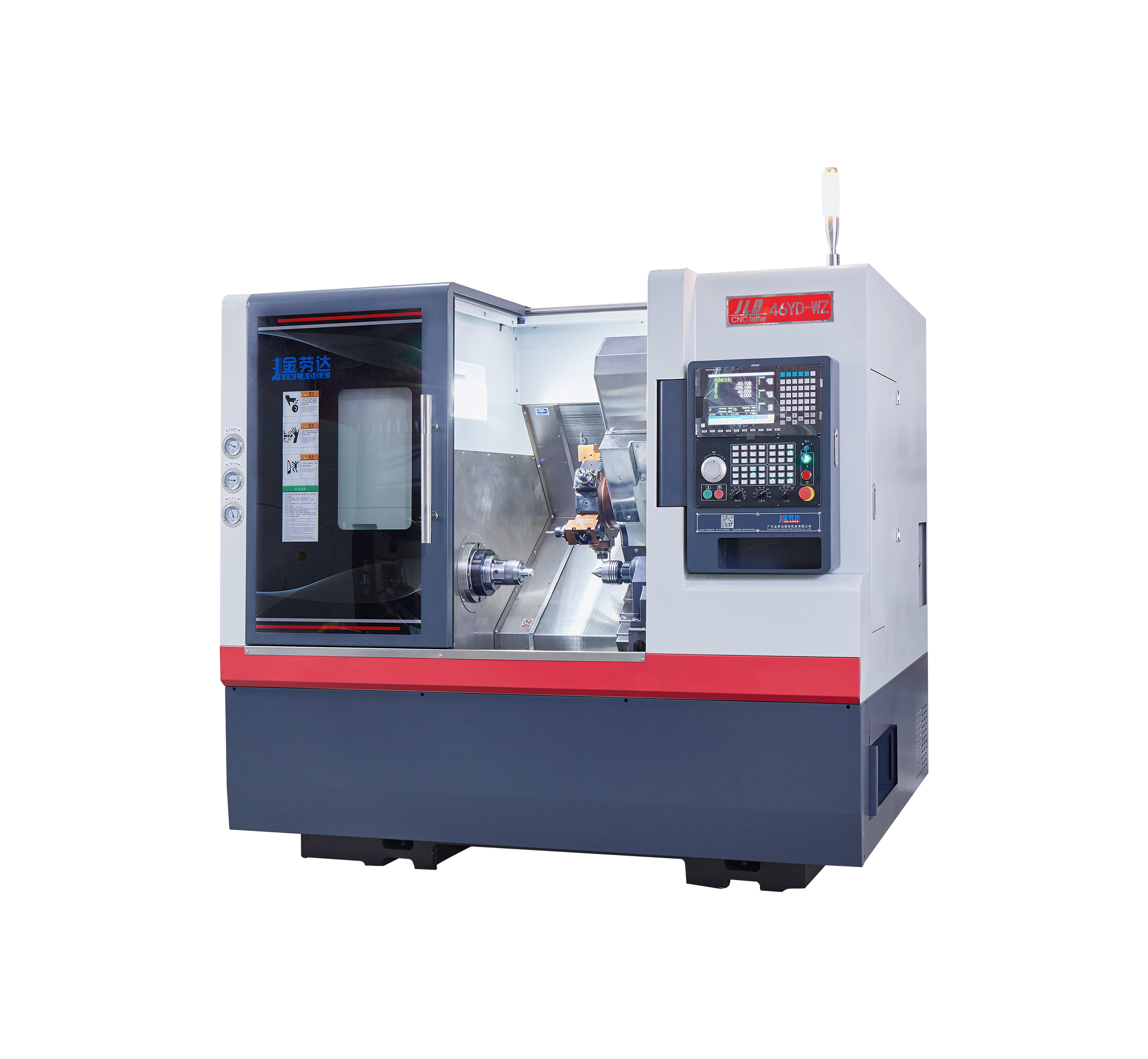

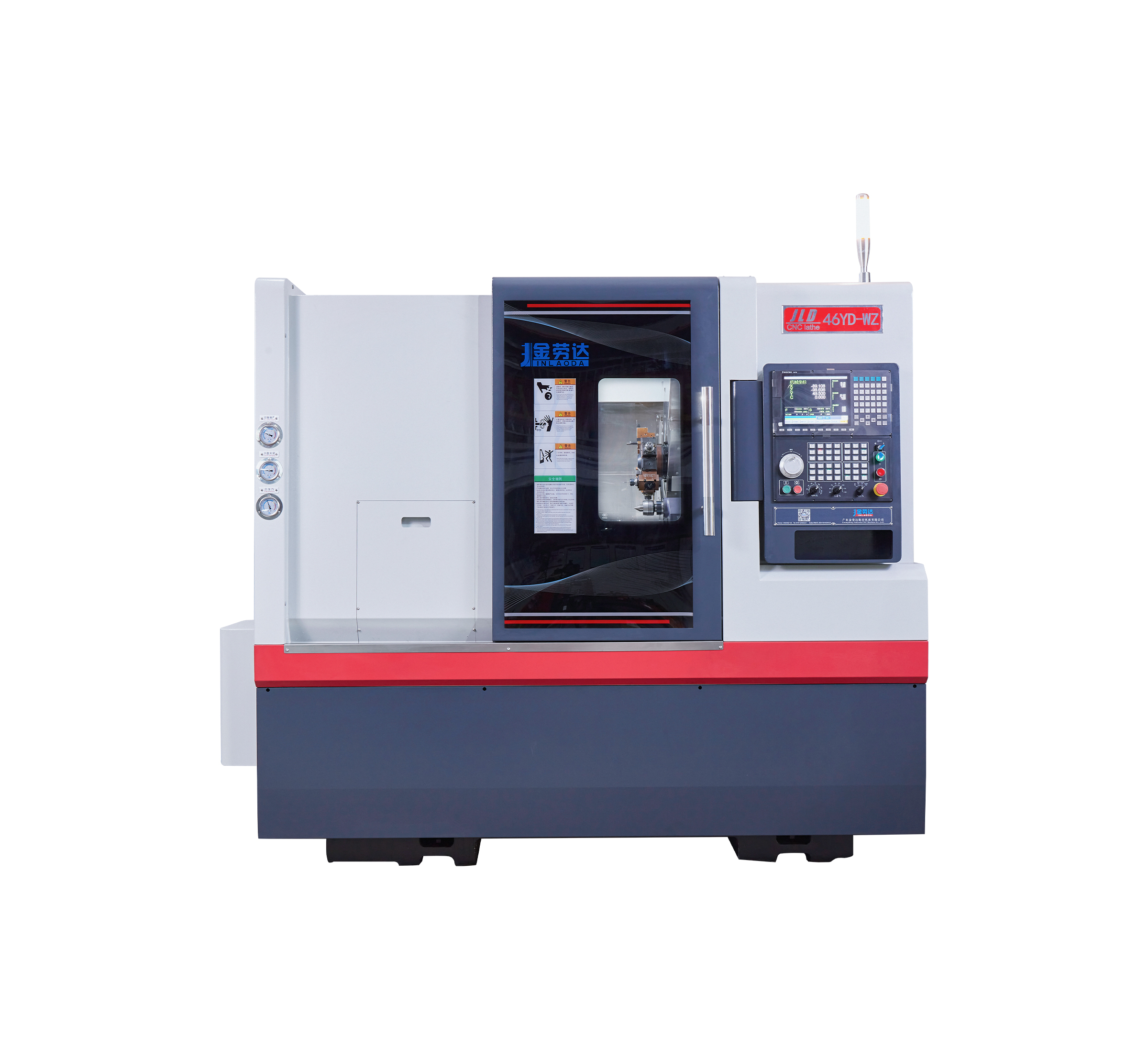

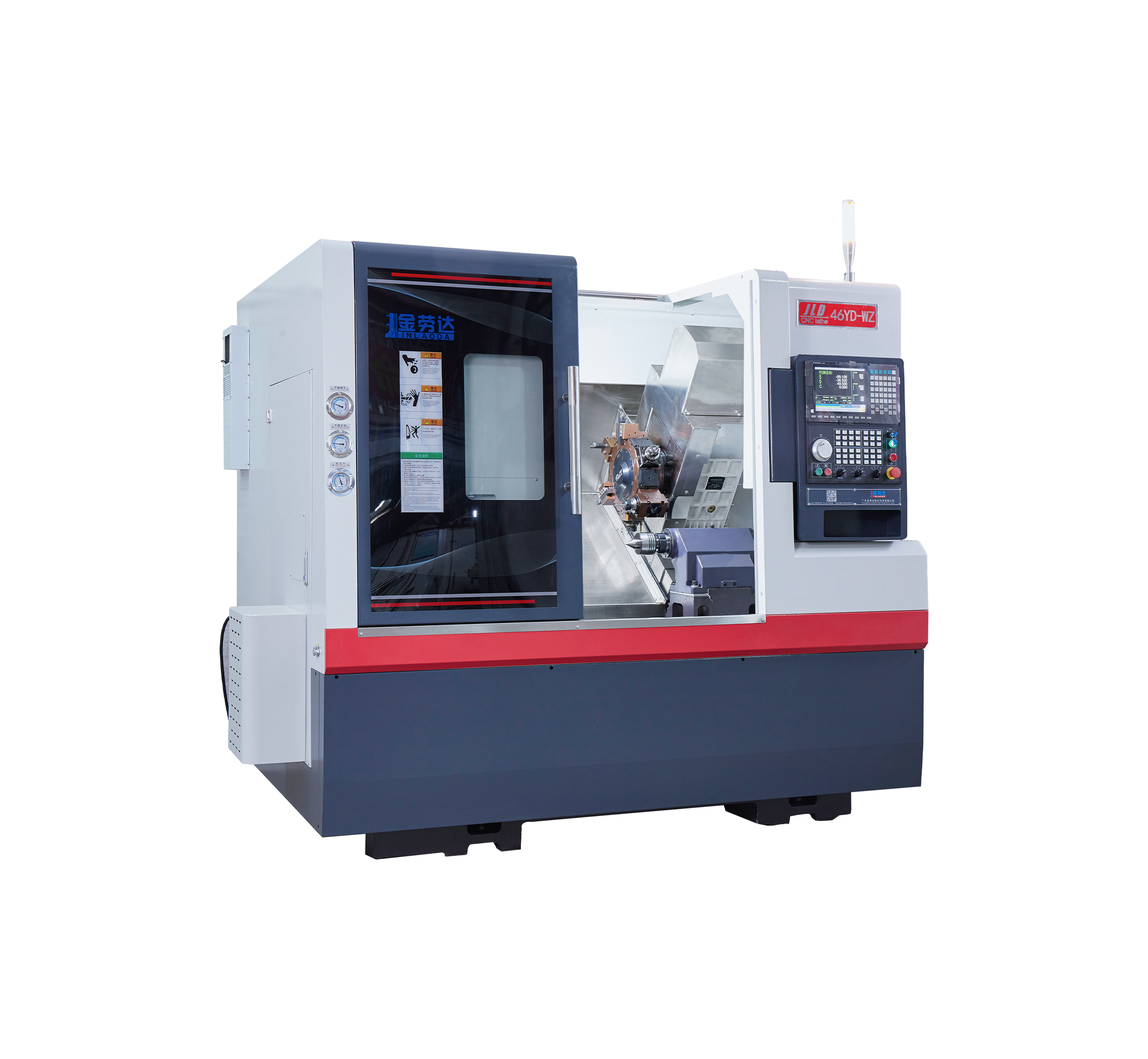

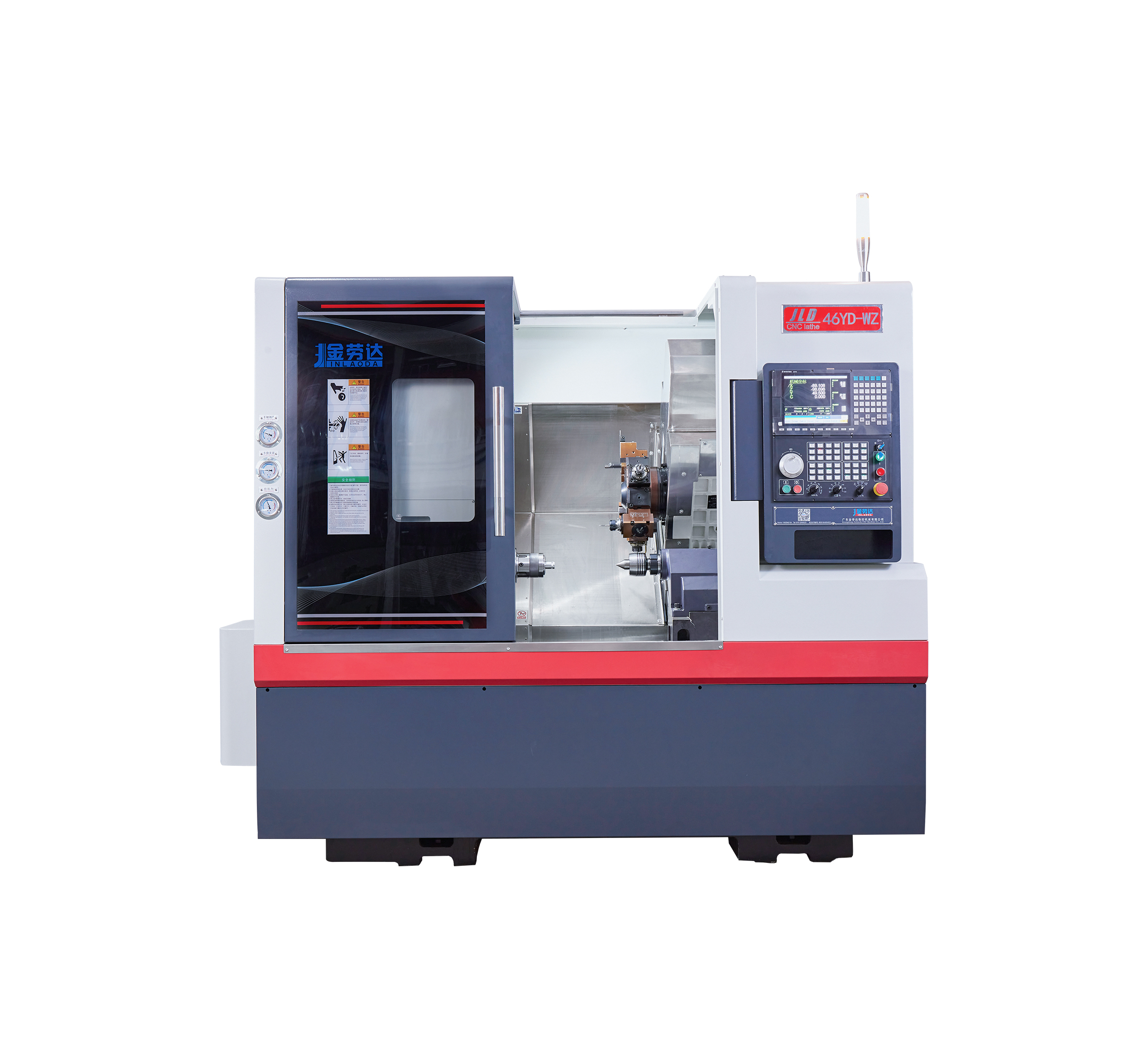

Name: LDS-46 52YD-WZ Tailstock Power Turret CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46 52YD-WZ
Availability: InStock
Rating: 5 (1 reviews)

Specification

The powerful 6-axis linkage function, combined with the power tool turret and hydraulic tailstock, makes the equipment more powerful, highly precise and easy to be maintained. It is suitable for processing large, shaft or complex process parts. It can complete turning, milling, drilling, tapping, boring and other processes in one clamping. It also has engraving function and can be used as a small drilling and tapping center.

LDS-46 52YD-H12 Power Turret CNC Lathe Parameters
Serial number	Item	Designation	46YD	52YD
1	Spindle	Mechanical Spindle	Φ56	Φ66
2		Maximum bar through-hole diameter mm	Φ45	Φ51
3		Spindle nose type	A2-5	A2-6
4		Maximum spindle speed rpm	6000	4000
5		Hydraulic three-jaw chuck	6-8 Inch
6		Disdance from spindle center to floor mm	1040mm
7		Distance from spindle center to front door mm	460
8	Machining range	Maximum swing diameter over bed mm	550mm
9		Maximum swing diameter over the slide mm	350MM
10		Maximum machining diameter (for Disc-type workpieces) mm	Φ400
11		Maximum machining length of workpiece mm	400mm
12	Stroke and maximum feed rate	X-axis effective travel （radius） mm	220mm
13		Z-axis effective travel mm	450mm
14		X/Z-axis rapid traverse rate	30m/min
15	Machining accuracy	X/Z-axis repeat positioning accuracy mm	±0.003
16		X/Z-axis positioning accuracy mm	±0.005
17	Machine structure and accessories specifications	Bed structure type	High-low rail 35°
18		X-axis linear guide specification mm	720-35 Roller
19		Z-axis linear guide specification mm	960-35 Roller
20		X-axis lead screw diameter & pitch (mm)	646-Φ3210
21		Z-axis lead screw diameter & pitch (mm)	812-Φ3210
22	Turret specification	Power turret model number	BMT45 Hardened guideway
23		Power turret (tool position) / pieces	12
24		Square/round turret specifications mm	□20*20、￠25
25		Turret center height mm	170
26		ool turret Y-axis travel (mm)	±50
27	Overall dimensions	L×W×H mm	2450x1950x2050
28		Net weight KG	3200

Versatile CNC Lathe for Precision Machining
The Jinlaoda CNC machine offers versatility and precision, making it ideal for various turning and milling operations. Equipped with a powerful tailstock and a power turret, this CNC lathe machine ensures smooth and efficient machining of parts with superior accuracy. The machine's robust construction and high-performance features allow it to handle heavy-duty tasks, reducing the time and effort required for multi-step processes. Whether for large-scale manufacturing or intricate custom parts, this machine provides consistent results with minimal errors. With its advanced control system, operators can easily set up and manage complex machining tasks, making this CNC machine an excellent choice for modern machining environments.

Advanced Tailstock and Power Turret for Increased Efficiency

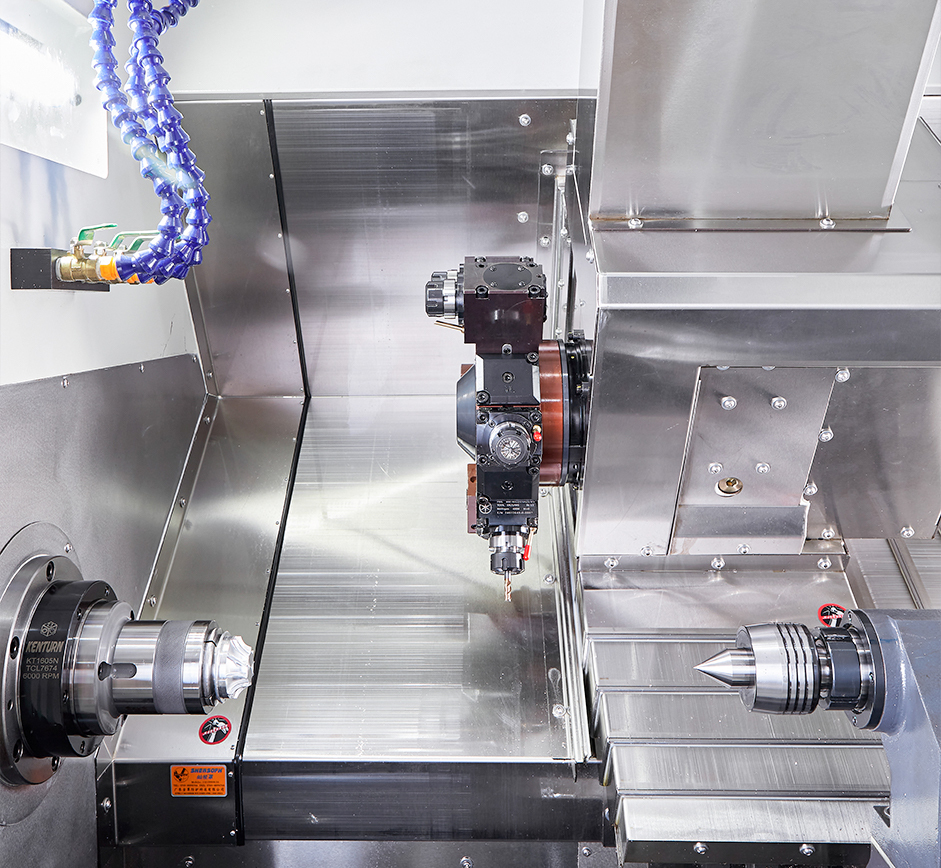

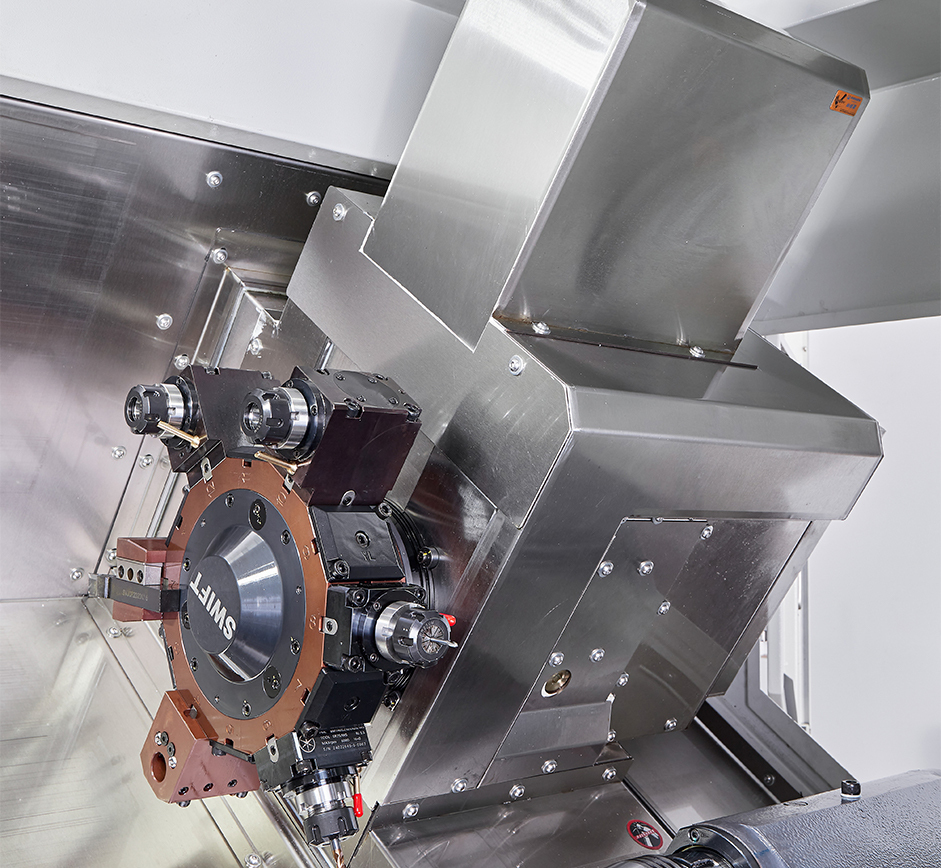

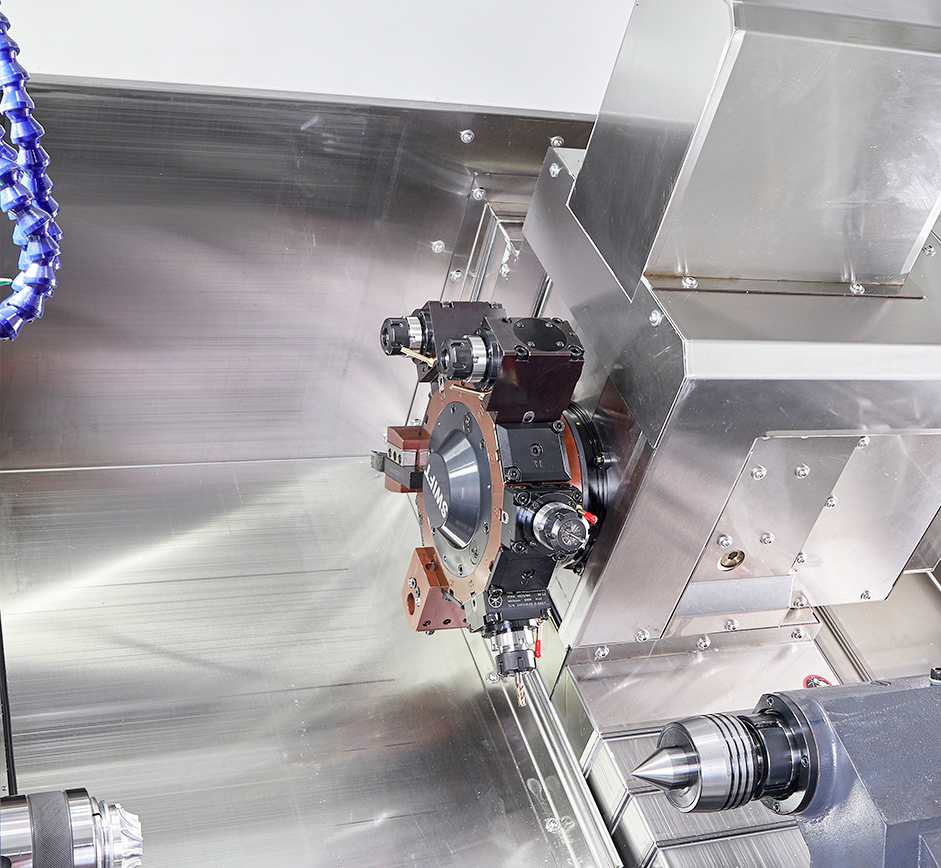

One of the standout features of the CNC lathe machine is its tailstock and power turret. The tailstock provides additional support for long and slender workpieces, ensuring stability and precision during machining. The power turret, on the other hand, offers quick tool changes, enhancing productivity and reducing downtime. This feature is crucial for high-volume operations where rapid tool changes are required without compromising the quality of the parts being produced. These components, combined with the advanced CNC control system, make the CNC machine a highly efficient tool for various manufacturing needs, allowing users to achieve greater flexibility and faster cycle times.

Durable Design with High Precision
Built with durability in mind, the Jinlaoda CNC machine is constructed from high-quality materials that ensure long-term reliability and consistent performance. The machine is designed to deliver high precision with each cut, whether machining complex shapes or performing standard turning tasks. Its stability, coupled with high-speed spindle options, allows it to maintain accuracy across a range of materials, including metals and plastics. The robust design and reliable components of the CNC lathe machine ensure minimal maintenance requirements, making it a cost-effective solution for businesses seeking reliable and high-performance machinery for daily operations.

Product Advantages

Enhanced Productivity with Tailstock and Power Turret
The CNC lathe machine is equipped with a tailstock and power turret, features that dramatically improve productivity. The power turret allows for quick tool changes, which are crucial for time-sensitive production. This efficiency reduces downtime between operations and enhances throughput. The tailstock, which supports longer workpieces, ensures that parts remain stable during the machining process, minimizing errors and improving part quality. By streamlining operations, these features of the CNC machine help businesses meet demanding production schedules with ease, providing both speed and precision.

Precision and Accuracy in Every Operation
The CNC machine excels in precision, ensuring that even the most intricate parts are machined to exact specifications. With its advanced control system, users can program detailed machining instructions with high accuracy. This allows for the creation of parts with tight tolerances, crucial in industries such as automotive and aerospace. Whether it's a simple part or a complex, multi-step operation, the CNC lathe machine delivers consistent, high-quality results every time, making it ideal for customers who require the highest level of precision in their machining processes.

Durable and Low Maintenance Design
The durable design of the CNC lathe machine ensures long-term reliability and low maintenance costs. Built with high-quality materials, this machine is capable of withstanding heavy usage without compromising performance. Its robust components, including the tailstock and turret, require minimal upkeep, which helps to reduce operational costs over time. Businesses looking to maximize their return on investment will benefit from the machine’s long-lasting performance and minimal downtime, making it a cost-effective solution for both small and large-scale operations.

Use Scenarios

Precision Machining for Aerospace and Automotive
The CNC lathe machine is particularly well-suited for industries such as aerospace and automotive manufacturing, where high precision and reliable performance are essential. The machine's ability to handle complex parts with tight tolerances makes it ideal for producing components used in these industries, such as engine parts, housings, and brackets. With its tailstock and power turret, the CNC machine can efficiently process large and small parts with high accuracy, meeting the demanding standards of both aerospace and automotive sectors.

Custom Part Production for Small to Medium-Sized Businesses
Small to medium-sized businesses looking for an efficient and reliable machine for custom part production will find the CNC lathe machine a perfect fit. The ability to quickly change tools with the power turret and the stability offered by the tailstock allows businesses to take on a variety of custom machining jobs. Whether it's small production runs or one-off prototypes, this CNC machine can handle it all with precision, helping businesses provide tailored solutions to their customers while keeping production costs under control.

High-Volume Manufacturing with Minimal Downtime
For businesses involved in high-volume manufacturing, the CNC lathe machine offers the speed and efficiency required to keep up with large-scale production demands. The combination of the power turret for quick tool changes and the tailstock for added stability ensures that parts are machined quickly and accurately, reducing cycle times and increasing throughput. With minimal downtime and reliable performance, this CNC machine is the ideal solution for manufacturers that need to meet tight deadlines without compromising on quality or precision.

FAQ

What materials can the LDS-46 52YD-WZ Tailstock Power Turret CNC Lathe machine process?
The LDS-46 52YD-WZ CNC lathe can machine a wide range of materials, including metals and plastics, suitable for various industrial applications. Its robust power turret and hydraulic tailstock enable precise operations on diverse materials, meeting the demands of articulated robot arm component manufacturing and other precision tasks.

Does the CNC lathe support customized setups for specialized machining tasks?
Yes, the LDS-46 52YD-WZ offers flexible programming via its CNC control system, allowing customized multi-operation machining in one setup. The 6-axis linkage and power turret support complex processes like turning, milling, and engraving, accommodating bespoke requirements for articulated robot component fabrication.

What are the installation and space requirements for the LDS-46 52YD-WZ CNC lathe?
The machine dimensions are 2450x1950x2050 mm, and it weighs approximately 3200 kg. Installation requires a stable, level foundation with sufficient space for operator access and maintenance. Proper setup ensures reliable operation of the power turret and tailstock for precision machining of industrial parts.

How often is maintenance required, and what does it involve for the LDS-46 52YD-WZ?
Maintenance is minimal due to the machine’s design but should include regular inspection of key components such as the hydraulic tailstock, power turret, and linear guides. Routine upkeep ensures sustained precision, minimizing downtime and supporting efficient production of precision parts for sectors like articulated arm robot assembly.
