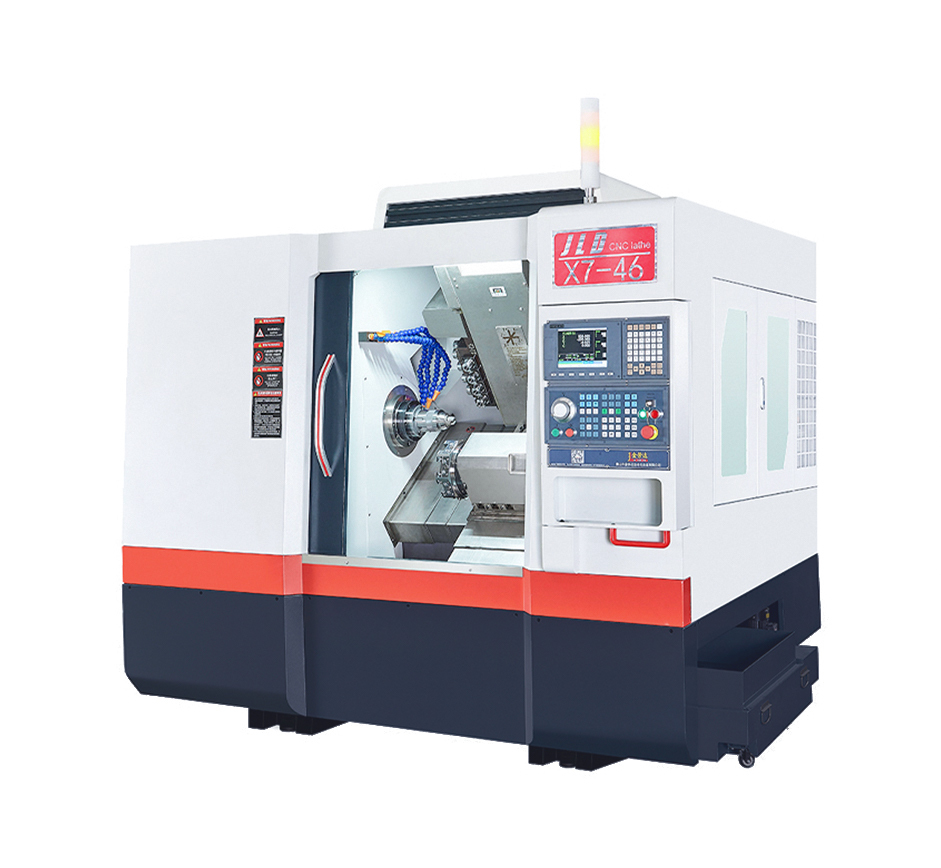

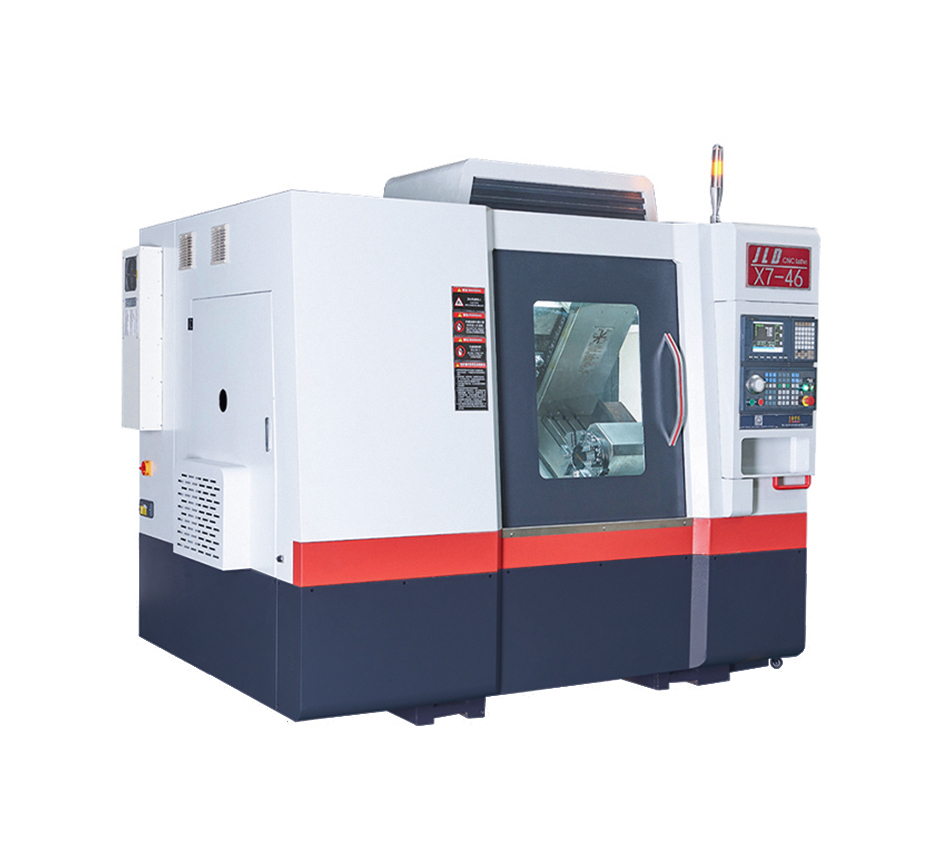

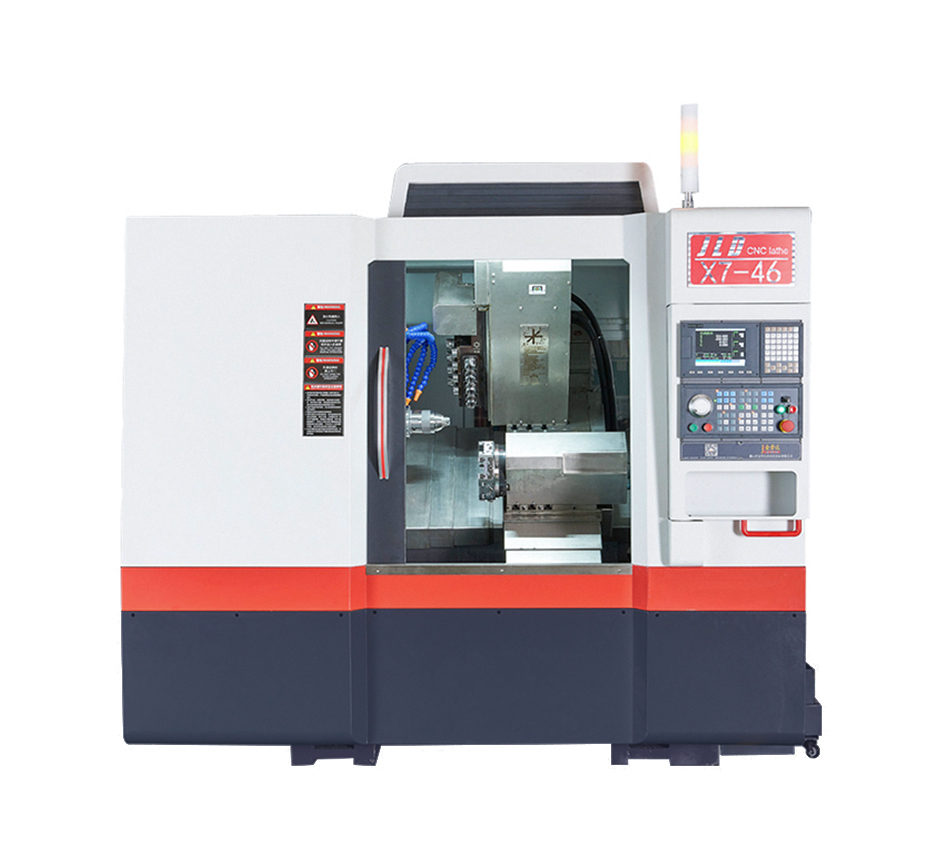

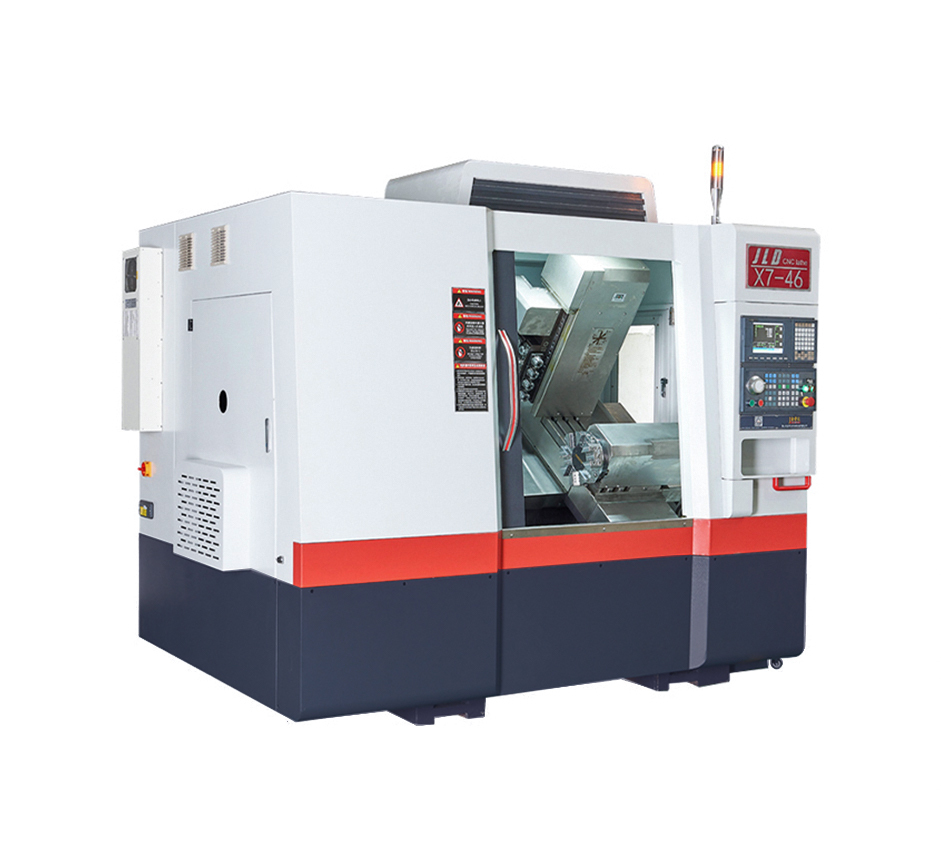

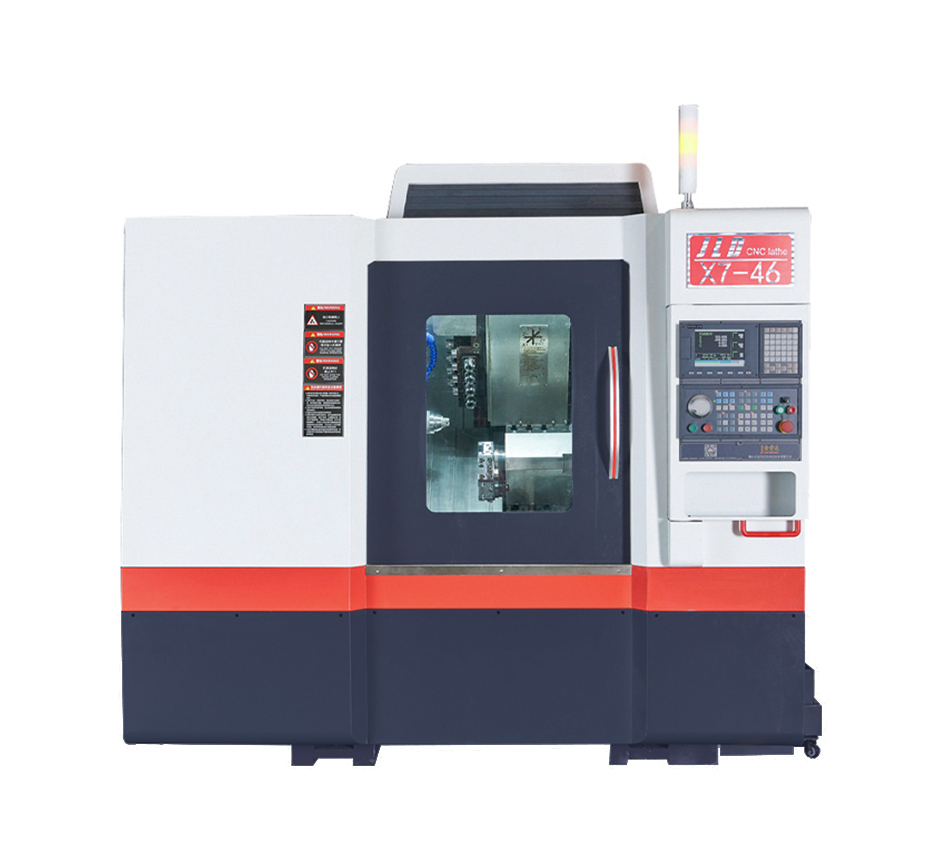

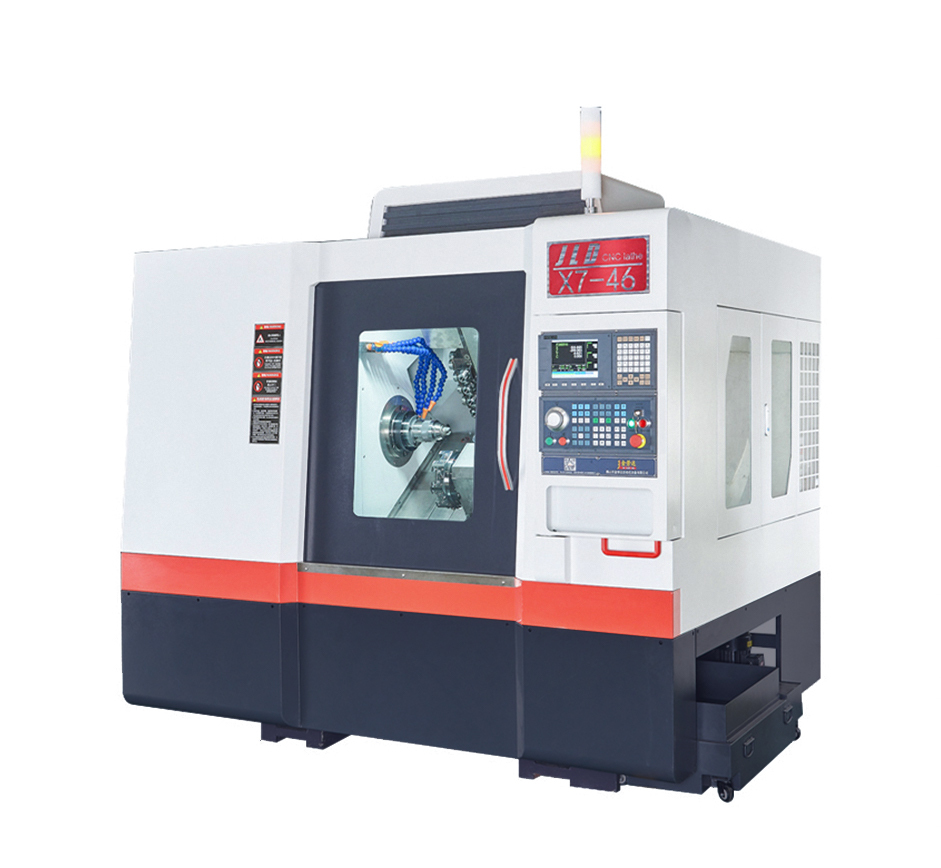

The LDS-46X7-DT is an advanced 6-axis turning-milling compound CNC lathe, integrating turning, milling, and drilling into one setup. Ideal for precision parts, it offers high efficiency from a leading cnc lathe machine manufacturer and supports industrial cnc machine demands.
| LDS-46X7-DT 4+4+4Y Turning-Milling Compound CNC Lathe Parameters |
| Serial number |
Item |
Unit |
46X7-DT |
| 1 |
Barrel spindle unit through hole |
mm |
Φ56 |
| 2 |
Maximum swing diameter over bed |
mm |
Φ260 |
| 3 |
Spindle |
Spindle nose type |
|
A2-5 |
| 4 |
Maximum spindle speed |
r/min |
5000 |
| 5 |
Spindle set speed |
r/min |
1-4000 |
| 6 |
Maximum bar through-hole diameter |
mm |
Φ45 |
| 7 |
Tool mounting type |
mm |
Servo turret |
| 8 |
Height from turret to spindle center |
mm |
80 |
| 9 |
Lead screw and guideway protection method |
|
Semi-protected |
| 10 |
Power head |
|
4+4+4Y |
| 11 |
Height from spindle center to floor |
mm |
1230 |
| 12 |
Lathe bed inclination |
Degree |
35 |
| 13 |
Turret specification |
Servo turret model number |
tool position / pieces |
63 Servo 8 positions |
| 14 |
Square/round turret specifications |
mm |
□25*25、￠25 |
| 15 |
Turret center height mm |
mm |
63 |
| 16 |
Tool turret Y-axis travel (mm) |
mm |
No |
| 17 |
X-axis effective travel |
mm |
1050 |
| 18 |
Z-axis effective travel |
mm |
450 |
| 19 |
X/Z axis rapid traverse setting speed |
mm |
24/30 |
| 20 |
X-axis lead screw diameter & pitch |
mm |
3208 |
| 21 |
Z-axis lead screw diameter & pitch |
mm |
3210 |
| 22 |
X-axis linear guideways |
mm |
30 |
| 23 |
Z-axis linear guideways |
mm |
30 |
| 24 |
Overall dimensions (L×W×H ) |
mm |
2400*1860*2170 |
| 25 |
Net weight |
KG |
3200 |
| 26 |
Roundness of machined workpiece |
mm |
0.003 |
| 27 |
Machining accuracy |
mm |
0.005 |
| 28 |
Cylindricity of machined workpiece |
mm |
0.012/200 |
| 29 |
/Z-axis repeat positioning accuracy |
mm |
0.005 |
| 30 |
X/Z-axis absolute positioning accuracy |
mm |
0.005 |
| 31 |
Spindle indexing repeat positioning accuracy |
mm |
≤20 arcseconds, i.e., 0.006° |
| 32 |
Spindle indexing absolute positioning accuracy |
mm |
70 arcseconds, i.e., 0.02° |
| 33 |
Accuracy class of guideways |
mm |
H |
| 34 |
Accuracy class of lead screw |
mm |
C3 |
| 35 |
Collet taper runout |
mm |
≤0.015 |
| 36 |
Spindle radial runout |
mm |
0.0025 |
Integrated Multi-Function Machining Platform for Precision ManufacturingThe LDS-46X7-DT serves as a flexible, all-in-one machining platform designed for manufacturers demanding versatility and precision. Targeted at businesses requiring complex multi-process operations, this machine consolidates turning, milling, drilling, tapping, boring, and engraving in a single compact setup. Such integration reduces handling and setup times, providing excellent ROI especially for engineering environments targeting diverse product ranges. Its design benefits those seeking cost efficiency by replacing multiple standalone machines, making it a strategic acquisition from trusted cnc machine suppliers capable of delivering reliable, industrial cnc machine solutions.
Advanced Technical Architecture Ensuring Ultra-High AccuracyEquipped with a 6-axis linkage system and a high-efficiency servo turret, the LDS-46X7-DT offers superior positional accuracy and repeatability. Technical parameters include a maximum spindle speed of 5000 r/min and a swing diameter over bed of 260 mm, supported by C3 class lead screws and H class linear guideways. The servo turret with eight tool positions facilitates rapid, reliable tool changes enhancing production agility. This desktop cnc milling machine offers precision metrics such as machining accuracy of 0.005 mm and spindle radial runout of 0.0025 mm, enabling complex geometries and multi-face workpiece machining with consistent quality. Its robust construction ensures stability under demanding operational conditions.
Industry Applications Demonstrating Workflow Integration and VersatilityThis compound cnc lathe machine excels in sectors requiring multi-process, high-precision machining within a single setup. Suitable for aerospace, medical devices, precision instruments, and custom prototype manufacturing, it enhances operational workflows by streamlining multiple machining steps. The machine's ability to handle intricate engraving and precision drilling alongside turning and milling makes it valuable for high-mix production environments. By enabling five-sided machining in one clamping, it ensures minimal tolerance accumulation and faster production turnaround, fulfilling the rigorous standards demanded by precision engineering firms sourcing solutions from expert cnc lathe machine manufacturers.
Product Advantages

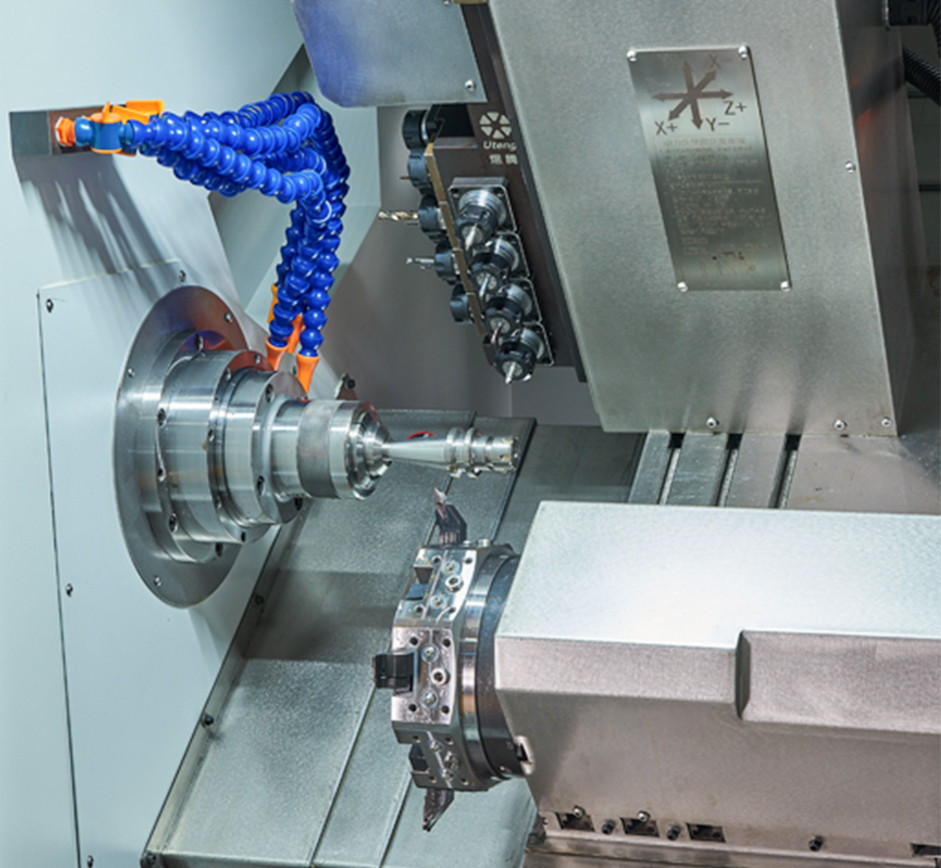

Sophisticated Design for Seamless Multi-Axis Machining IntegrationThe LDS-46X7-DT features a modular 6-axis linkage system combined with a servo turret that supports multiple tool orientations and fast transitions. This structural design eliminates the need for repositioning, increasing machining efficiency while maintaining alignment precision. The lathe bed’s 35-degree inclination and semi-protected lead screw and guideway shields enhance long-term durability under industrial cnc machine workloads. Such thoughtfully engineered ergonomics, provided by reputable cnc machine suppliers, reduce floor space requirements and capital expenditure by consolidating multiple machining capabilities in one unit.
Optimized Operation for High-Precision and High-Mix ProductionPerformance-wise, this cnc lathe machine manufacturer’s solution delivers rapid traverse speeds up to 30 mm for Z-axis and incorporates precise spindle controls ensuring high repeatability. The machine’s interface and servo turret configuration enable quick tool changes and minimal downtime, suitable for dynamic production demands. Operators benefit from reliable accuracy metrics, enabling consistent production even in batch environments or prototyping with varied geometry. This machine’s ease of programming and stable construction reduce operator fatigue while maximizing throughput in industrial cnc machine operations.Use Scenarios
Manufacturing of Aerospace Components with Precision and EfficiencyWithin aerospace manufacturing, the LDS-46X7-DT supports production processes requiring complex geometries and stringent tolerances. Its multi-axis capabilities allow simultaneous turning, milling, and engraving of titanium alloys and other aerospace-grade materials in a single setup, lowering handling errors. The integration of this milling cnc machine improves compliance with aerospace standards by ensuring dimensional accuracy and surface finish quality, seamlessly fitting into existing high-precision
manufacturing workflows that demand both speed and reliability.
Precision Instrument Housing Production for Medical and Scientific ApplicationsIn medical device manufacturing, the LDS-46X7-DT enables fabrication of precision instrument housings and components that require five-sided machining and multiple hole configurations. This desktop cnc milling machine is capable of processing materials like stainless steel and specialized composites while maintaining tight tolerances and repeatability. Its compact footprint and combined multi-function capabilities facilitate its integration into cleanroom-compatible production environments, optimizing workflow by reducing setup steps and supporting stringent quality assurance protocols common in medical equipment manufacturing.
FAQ
What types of materials can the LDS-46X7-DT CNC lathe machine process?
The LDS-46X7-DT supports machining of metals, plastics, and composite materials. Its versatile design makes it suitable for high-precision parts across industries such as aerospace and medical, making it a reliable choice among industrial CNC machine options.
Can this machine be customized for specific industrial applications?
Yes, the LDS-46X7-DT can be configured with various tooling and axis options to meet particular manufacturing demands. As a dependable CNC lathe machine manufacturer, we offer tailored configurations to optimize workflow and precision for your projects.
What installation support is provided with the CNC turning-milling machine?
We offer comprehensive installation services including setup guidance, alignment, and calibration. Our expert team ensures the machine complies with operational requirements, enabling efficient use of this advanced milling CNC machine from day one.
How should maintenance be managed for long-term performance?
Regular maintenance is essential, including spindle inspection, turret checks, and timely software updates. Proper upkeep preserves the machine's precision and reliability, which are key advantages of investing in a quality industrial CNC machine like the LDS-46X7-DT.
