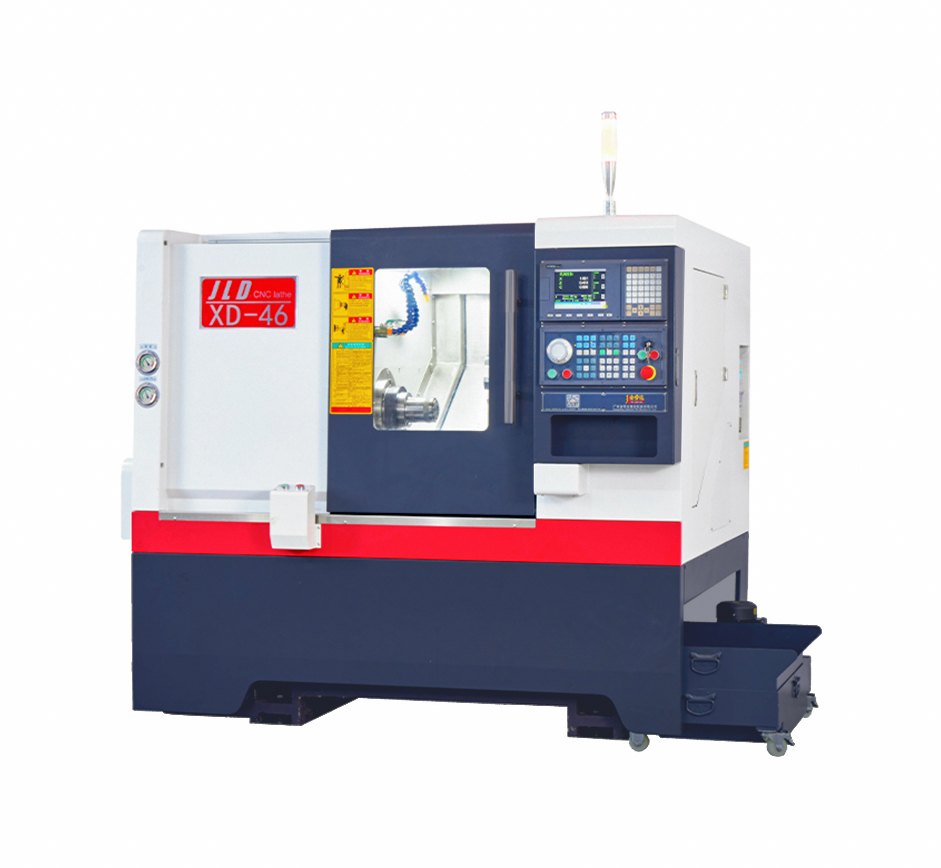

Name: LDS-46XD-C3 Side 3-Axis Turning-Milling CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46XD-C3
Availability: InStock
Rating: 5 (1 reviews)

Specification

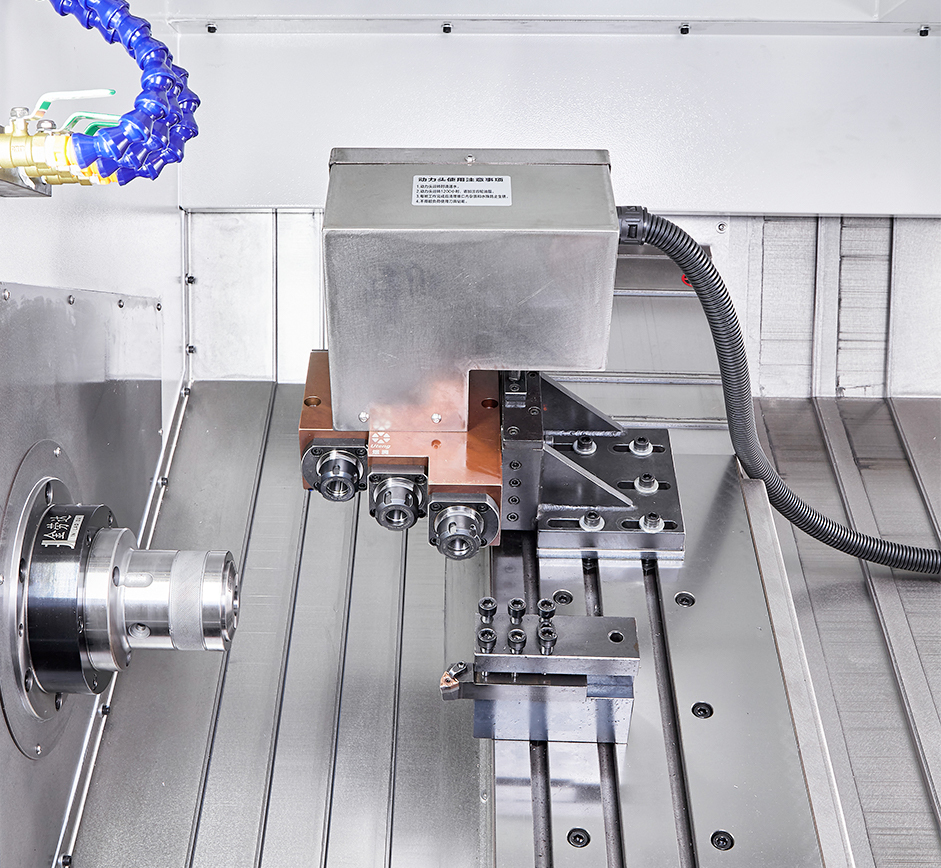

The gang tool high-low rail CNC lathe integrates turning, milling and drilling functions, and is equipped with a 3-axis power head on the side. Complex contours (such as eccentricity, end face grooves, polygons, and curved surfaces) and side turning, milling, drilling, tapping and other processes can be completed in one clamping, significantly reducing the process turnover time and clamping errors. Designed specifically for the processing of parts with high efficiency and high precision requirements, it significantly enhances production flexibility and quality consistency.

LDS-46XD-C3 Side 3-Axis Turning-Milling CNC Lathe Parameters
Serial number	Item	Designation	Parameters
1	Spindle	Maximum machining diameter (for Disc-type workpieces) mm	Φ300
2		Maximum bar through-hole diameter mm	Φ45
3		Spindle nose type	A2-5
4		Maximum spindle speed rpm	5000
5		Spindle	Mechanical spindle
6		Chuck	User definition
7		Rotary hydraulic cylinder	646
8		Disdance from spindle center to floor mm	1100
9		Distance from spindle center to front door mm	560
10	Stroke and maximum feed rate	X-axis effective travel mm	900
11		Z-axis effective travel mm	350
12		X/Z-axis rapid traverse rate	30m/min
13	Power head	Side triple power head	ER25
16	Machining accuracy	X/Z-axis repeat positioning accuracy mm	0.005
17	Machining accuracy	X/Z-axis positioning accuracy mm	0.005
18	Motor power	Spindle servo motor KW	5.5
19		X-axis servo motor KW	1.7 (SYNTEC Am8) 3000 RPM
20		Z-axis servo motor KW	1.7 (SYNTEC Am8) 3000 RPM
21	Machine structure type and accessories specifications	Bed structure type	35° Integral high-low rail slant bed
22		X-axis linear guide specification mm	30
23		Z-axis linear guide specification mm	30
24		X-axis lead screw diameter & pitch (mm)	Φ3210
25		Z-axis lead screw diameter & pitch (mm)	Φ3210
26	Overall dimensions	L×W×H mm	205017501750
27	Overall dimensions	Net weight KG	2500
