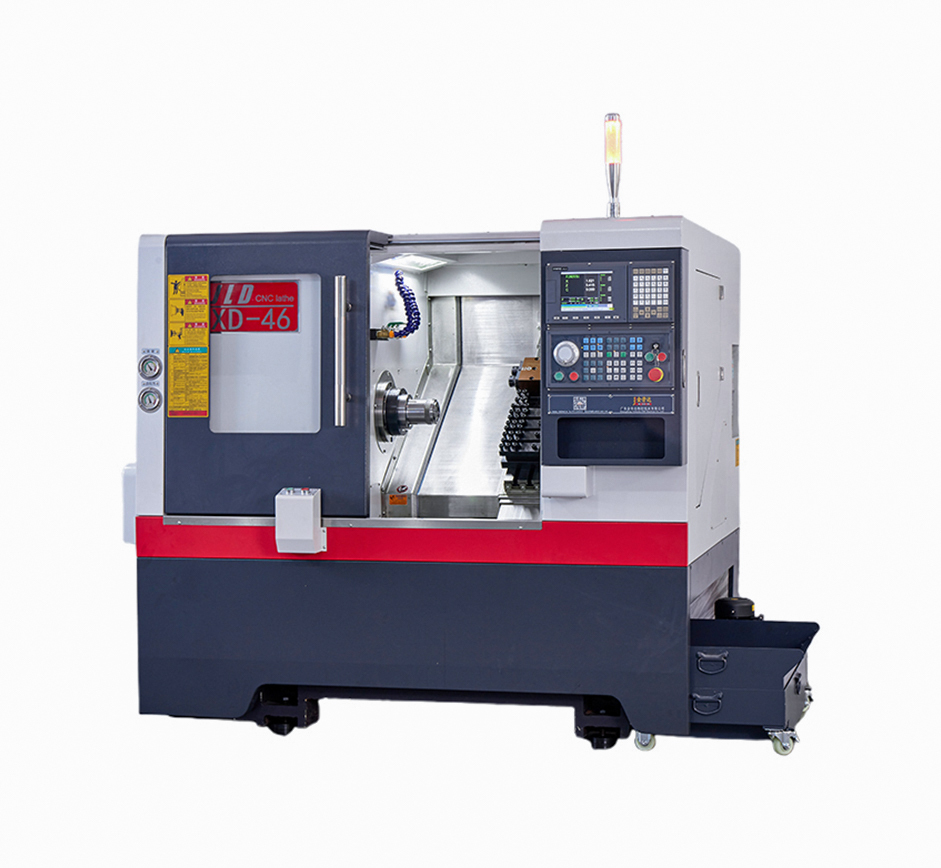

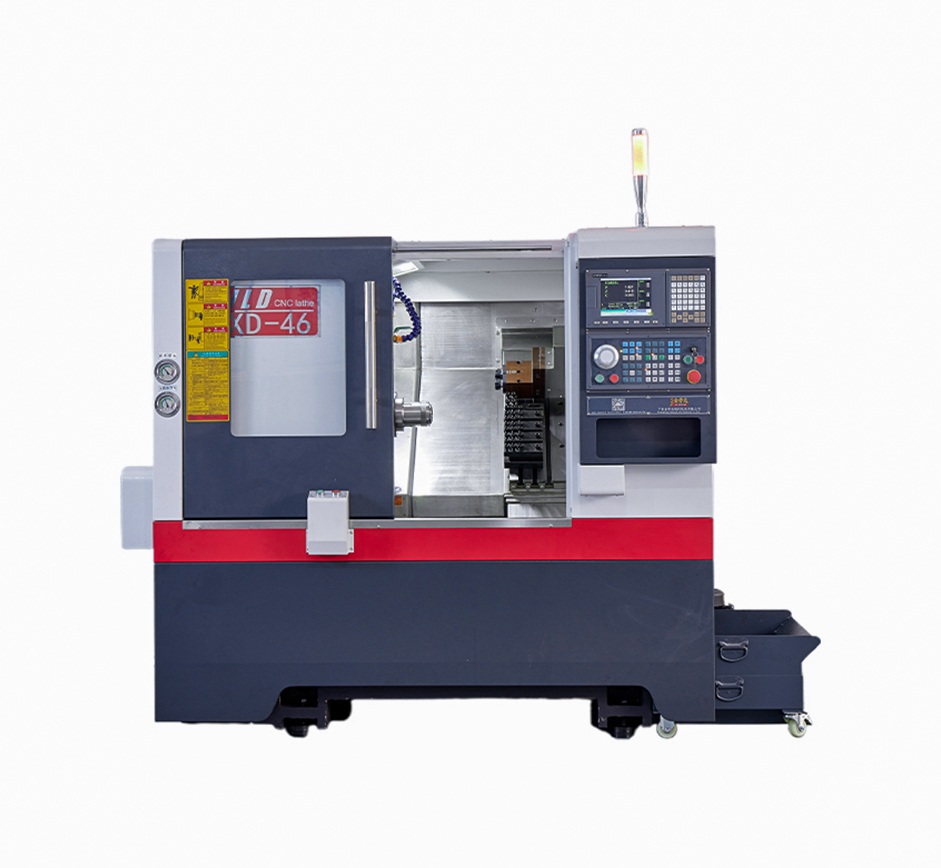

Name: LDS-46XD-D2 End-mounted 2-axis Turning-Milling CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46XD-D2
Availability: InStock
Rating: 5 (1 reviews)

Specification

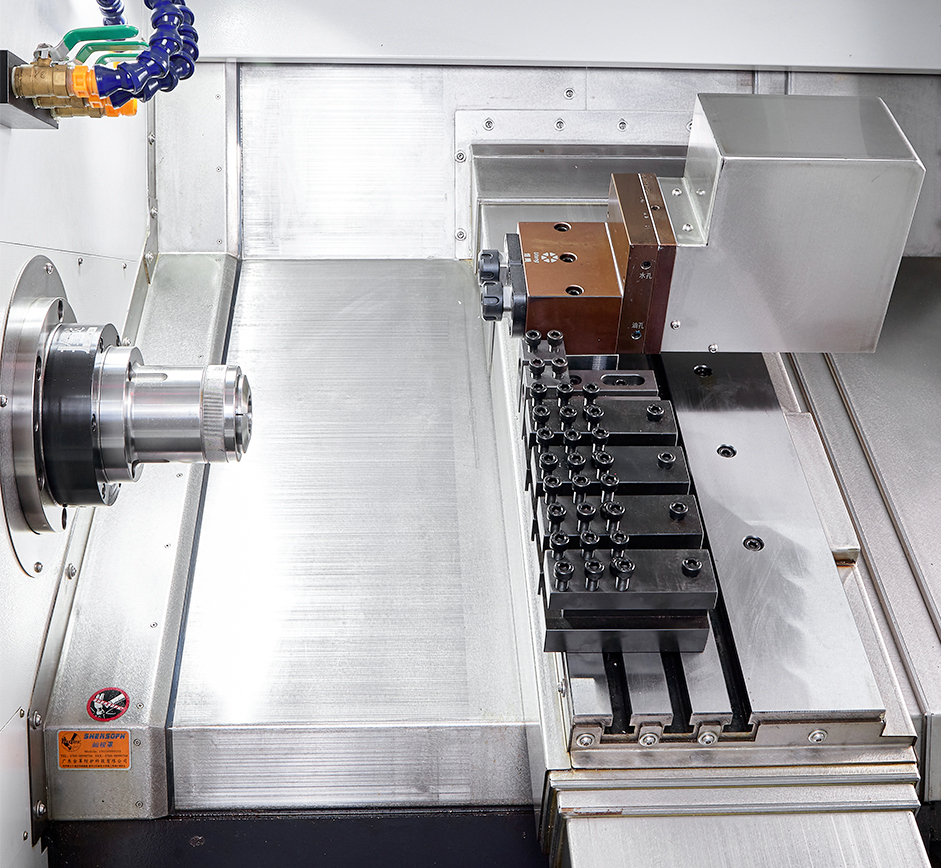

The gang tool high-low rail CNC lathe integrates turning, milling and drilling functions, and is equipped with a 2-axis power head for the end face. Complex contours (such as eccentricity, end face grooves, polygons, and curved surfaces) and end face turning, milling, drilling, tapping and other processes can be completed in one clamping, significantly reducing the process turnover time and clamping errors. Designed specifically for parts with high efficiency and high precision requirements, it significantly enhances production flexibility and quality consistency.

LDS-46XD-D2 End-mounted 2-axis Turning-Milling CNC Lathe Parameters
Serial number	Item	Designation	Parameters
1	Spindle	Maximum machining diameter (for Disc-type workpieces) mm	Φ300
2		Maximum bar through-hole diameter mm	Φ45
3		Spindle nose type	A2-5
4		Maximum spindle speed rpm	5000
5		Spindle	Mechanical spindle
6		Chuck	User definition
7		Rotary hydraulic cylinder	646
8		Disdance from spindle center to floor mm	1100
9		Distance from spindle center to front door mm	560
10	Stroke and maximum feed rate	X-axis effective travel mm	900
11		Z-axis effective travel mm	350
12		X/Z-axis rapid traverse rate	30m/min
13	Power head	End dual power head	ER25
16	Machining accuracy	X/Z-axis repeat positioning accuracy mm	0.005
17	Machining accuracy	X/Z-axis positioning accuracy mm	0.005
18	Motor power	Spindle servo motor KW	5.5
19		X-axis servo motor KW	1.7 (SYNTEC Am8) 3000 RPM
20		Z-axis servo motor KW	1.7 (SYNTEC Am8) 3000 RPM
21	Machine structure type and accessories specifications	Bed structure type	35° Integral high-low rail slant bed
22		X-axis linear guide specification mm	30
23		Z-axis linear guide specification mm	30
24		X-axis lead screw diameter & pitch (mm)	Φ3210
25		Z-axis lead screw diameter & pitch (mm)	Φ3210
26	Overall dimensions	L×W×H mm	205017501750
27	Overall dimensions	Net weight KG	2500

Robust Design for Precision Engineering
The Jinlaoda CNC machine is engineered for top-tier precision and efficiency. With its 2-axis turning and milling capabilities, this machine excels in delivering accurate and repeatable results, making it ideal for complex parts and tight tolerances. The CNC milling machine structure is robust, ensuring stability during high-speed operations. It is suitable for both small-scale prototypes and large production runs, offering versatility across various industries. Built with advanced components, this machine guarantees minimal wear and tear, contributing to long-term reliability and consistent performance in challenging environments.

Versatile Milling and Turning Functionality
Equipped with versatile features, the CNC milling machine is designed to handle a variety of tasks, from intricate milling to precision turning. The integrated 2-axis system provides dynamic flexibility, making it highly adaptable to different operations. Whether you’re machining metal, plastic, or composites, this CNC machine offers the versatility needed for a wide range of applications. Its user-friendly interface and automated features simplify programming and operation, ensuring reduced downtime and optimized throughput. Operators can easily switch between milling and turning operations, maximizing production efficiency.

Advanced Features for Maximum Efficiency
The Jinlaoda CNC machine comes with advanced features that increase operational efficiency. These include an easy-to-use control panel, high-speed spindle options, and precise motor controls. The machine’s CNC milling machine technology allows for seamless integration with other automated systems, reducing the need for manual intervention and minimizing errors. Enhanced cooling and lubrication systems keep components running at optimal temperatures, ensuring smooth operations even during heavy usage. With exceptional repeatability and precision, this machine offers high performance for industries requiring fast, accurate production cycles.

Product Advantages

High Precision and Reliability
The CNC milling machine from Jinlaoda guarantees high precision and reliability in demanding tasks. Thanks to its advanced spindle design and automated controls, this machine achieves tight tolerances and minimizes defects. The superior construction and stable operation of the CNC machine ensure that it can handle continuous work cycles without sacrificing quality. This makes it a trusted choice for industries like aerospace, automotive, and manufacturing, where precision is non-negotiable.

Cost-Effective Production Solution
Offering a balance between performance and cost, the CNC machine is designed for efficiency and value. It provides excellent precision and durability without the high upfront investment associated with more complex machinery. Its low maintenance requirements and efficient operation contribute to long-term savings, making it an ideal choice for both small and large businesses looking to optimize production costs. The CNC milling machine is engineered to handle diverse tasks with minimal downtime, ensuring businesses can stay productive while controlling operational expenses.

User-Friendly Interface and Automation
The CNC milling machine is equipped with a user-friendly interface that simplifies programming and operation. The intuitive control system allows operators to easily set up and manage jobs, reducing training time and potential errors. With automated processes, such as tool changes and workpiece measurements, the CNC machine enhances productivity by reducing manual intervention and increasing throughput. This automation allows businesses to maximize operational efficiency and reduce labor costs, all while maintaining top-quality results.

Use Scenarios

Ideal for Precision Manufacturing
The CNC milling machine is perfect for precision manufacturing tasks, where high accuracy is crucial. It is particularly well-suited for industries like aerospace, automotive, and medical device production, where tight tolerances and repeatability are essential. The CNC machine can handle complex geometries and intricate designs, making it a valuable tool for custom parts and small-batch production. Whether creating prototypes or full production runs, this machine offers unmatched versatility and precision.

Efficient for High-Volume Production
The CNC milling machine is also highly effective for high-volume production environments. Its ability to maintain accuracy over extended periods and handle continuous operation makes it ideal for mass production tasks. The CNC machine reduces manual labor by automating tasks such as part loading, tool changing, and measurement, leading to a more streamlined production process. It can manage large quantities of parts without compromising quality or performance, making it a preferred choice for industries needing high productivity.

Versatile for Custom Machining
Custom machining tasks benefit greatly from the flexibility of the CNC milling machine. The 2-axis turning and milling capabilities allow it to tackle a variety of materials and geometries, from simple to highly complex designs. This machine is ideal for industries such as mold making, metalworking, and electronics, where customization and precision are key. The CNC machine adapts easily to different project requirements, ensuring that companies can meet their specific machining needs efficiently.

About Us

Jinlaoda, a trusted name in the CNC machine industry, specializes in providing high-performance machinery and related solutions for industries worldwide. With extensive experience in the field, we are committed to offering advanced machinery designed for precision, durability, and operational efficiency across various industrial applications. Our primary focus is on CNC milling and turning technologies, which we manufacture and test to meet the highest quality standards. By integrating cutting-edge automation and control systems, we ensure that our products deliver unmatched performance in a variety of industrial settings. With a global customer base and a dedicated R&D team, Jinlaoda continues to drive innovation in the CNC machinery sector, providing solutions that enhance production capabilities and streamline operations.

FAQ

What sets Jinlaodacnc apart from other CNC machine manufacturers?
Jinlaodacnc stands out due to its focus on delivering durable, high-performance machinery. Our machines feature 2-axis turning and milling systems, designed to meet the demands of various industries, such as aerospace and automotive, where precision and efficiency are paramount.

Can this CNC milling machine support mass production runs?
Absolutely. The CNC milling machine is built for high-efficiency, high-volume manufacturing, ensuring that large production runs can be completed with exceptional accuracy. Its automation features streamline operations and reduce manual oversight, which helps to maintain consistent output quality.

Which materials can be processed with Jinlaodacnc machines?
Our machines are versatile and capable of processing a wide range of materials, including metals, plastics, and composites. Whether for milling or turning, the flexibility of the machine allows it to adapt to a variety of production needs across industries like electronics, automotive, and industrial machinery.

How easy is it to operate the CNC milling machine?
The CNC milling machine is equipped with an intuitive control system, allowing operators of all skill levels to run the machine with ease. It also features automated systems that help reduce setup time and errors, enhancing overall operational efficiency.

Which industries benefit most from using Jinlaodacnc machines?
Jinlaodacnc's machinery is particularly beneficial in industries that require high-precision manufacturing, such as aerospace, automotive, medical devices, and custom machining. These sectors rely on CNC technology for consistent, high-quality output in complex and critical applications.

Boost your production efficiency with a CNC milling machine today – order now!
