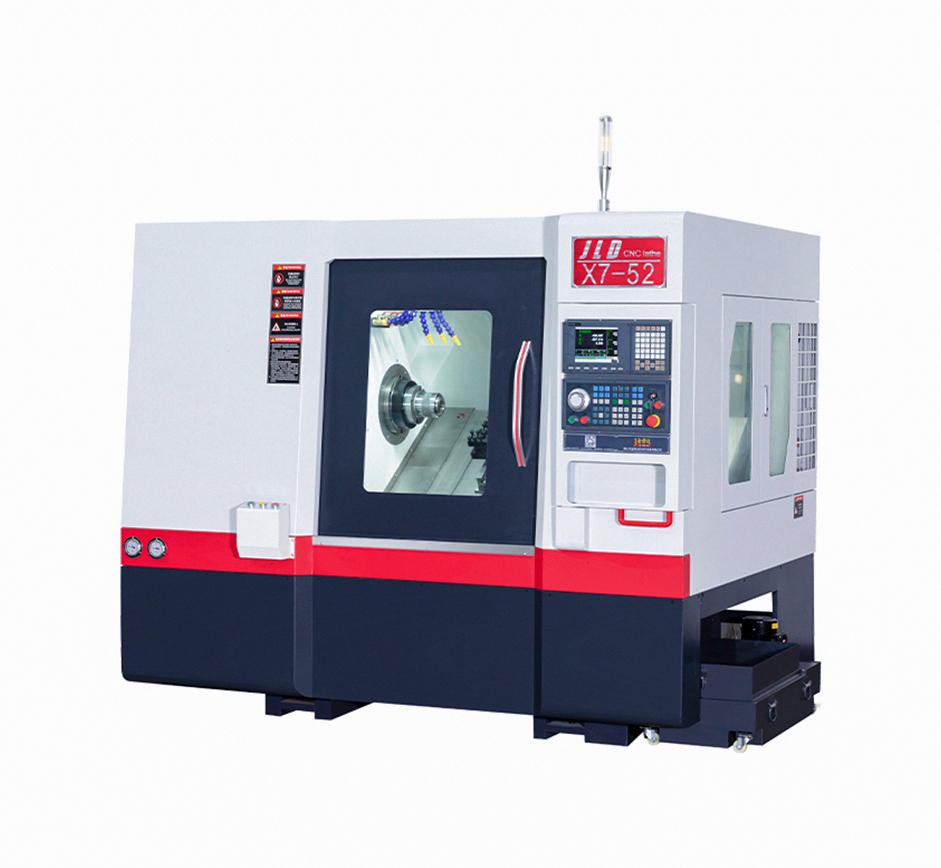

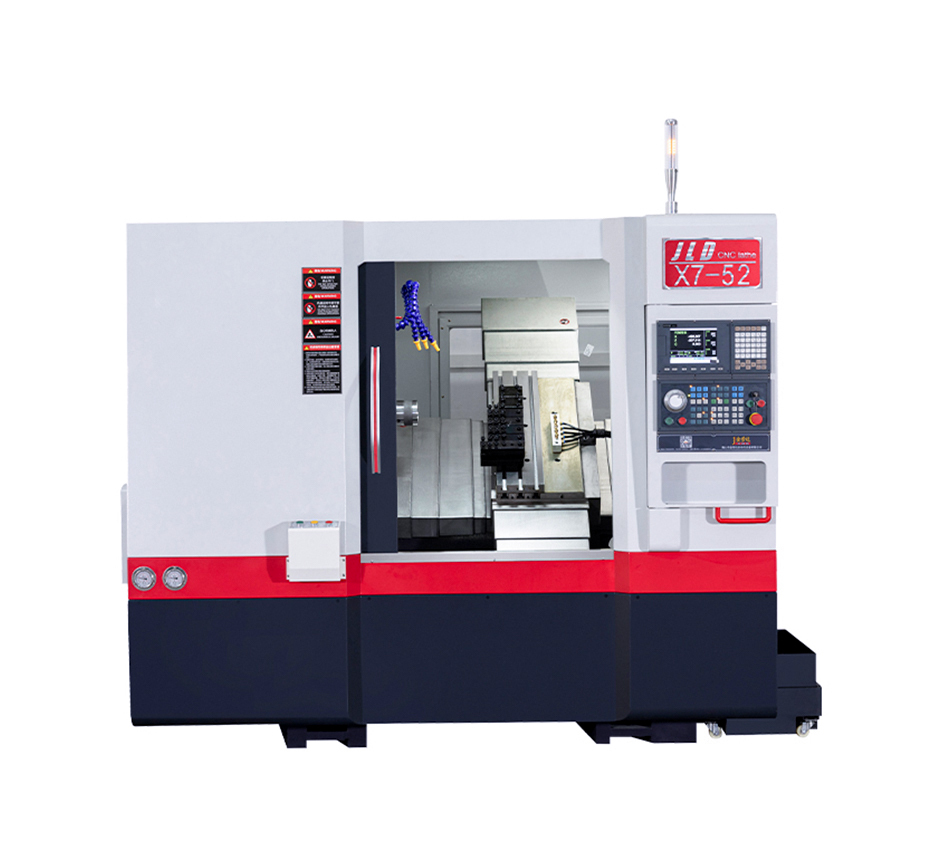

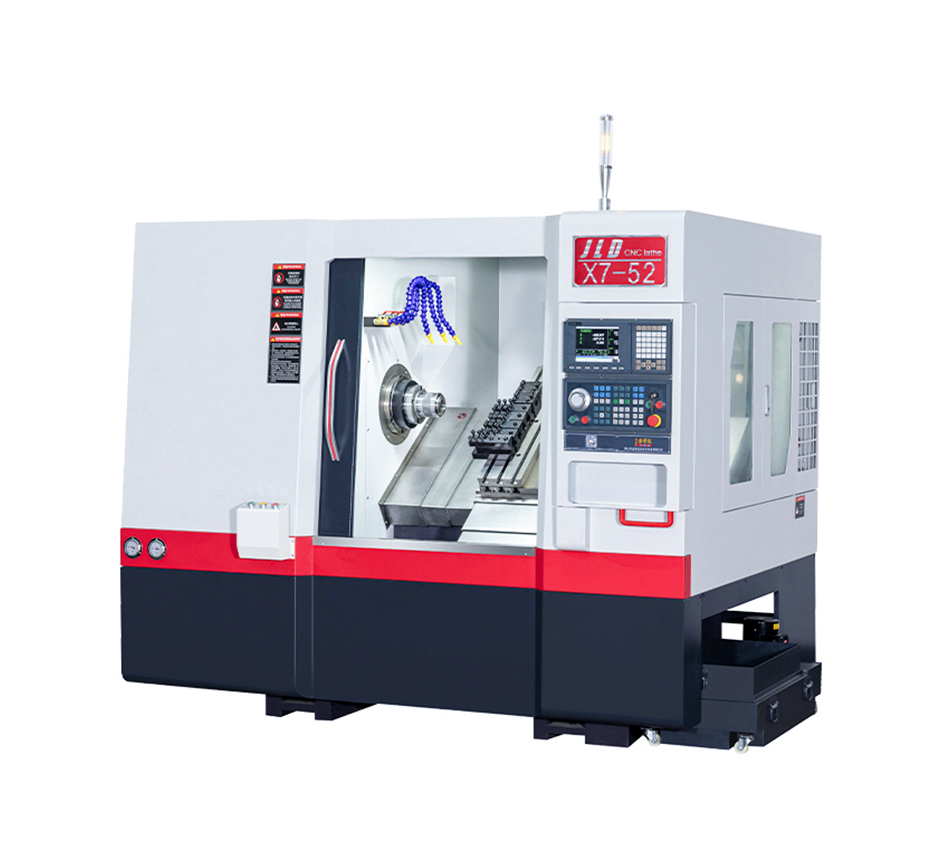

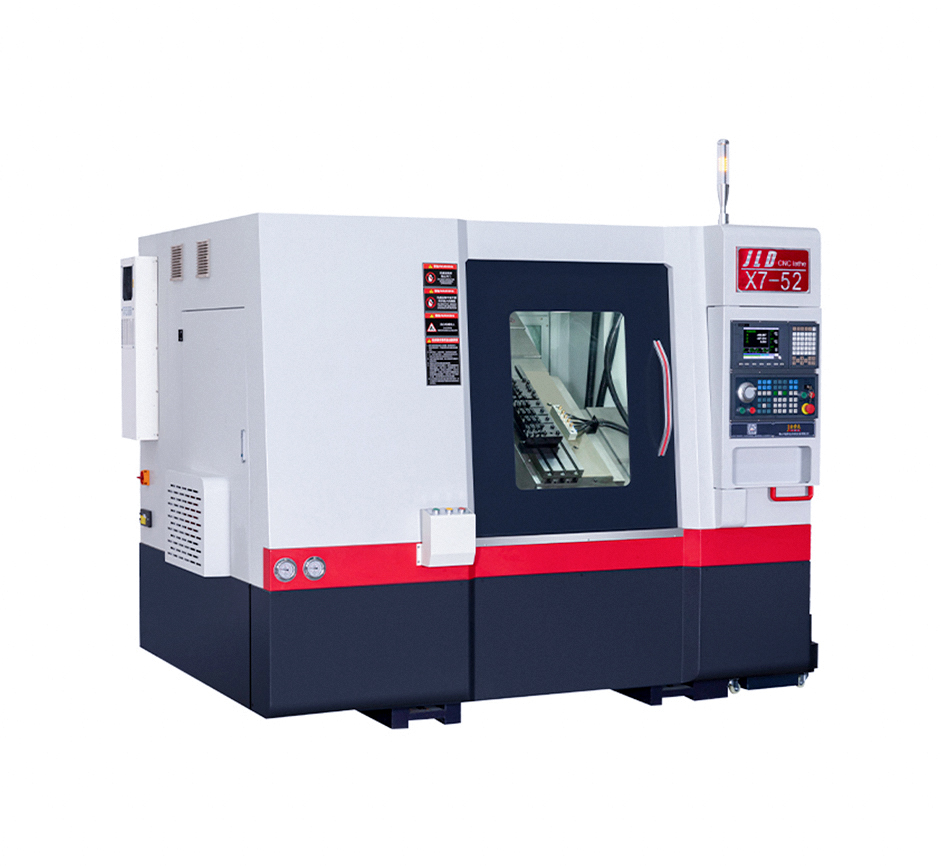

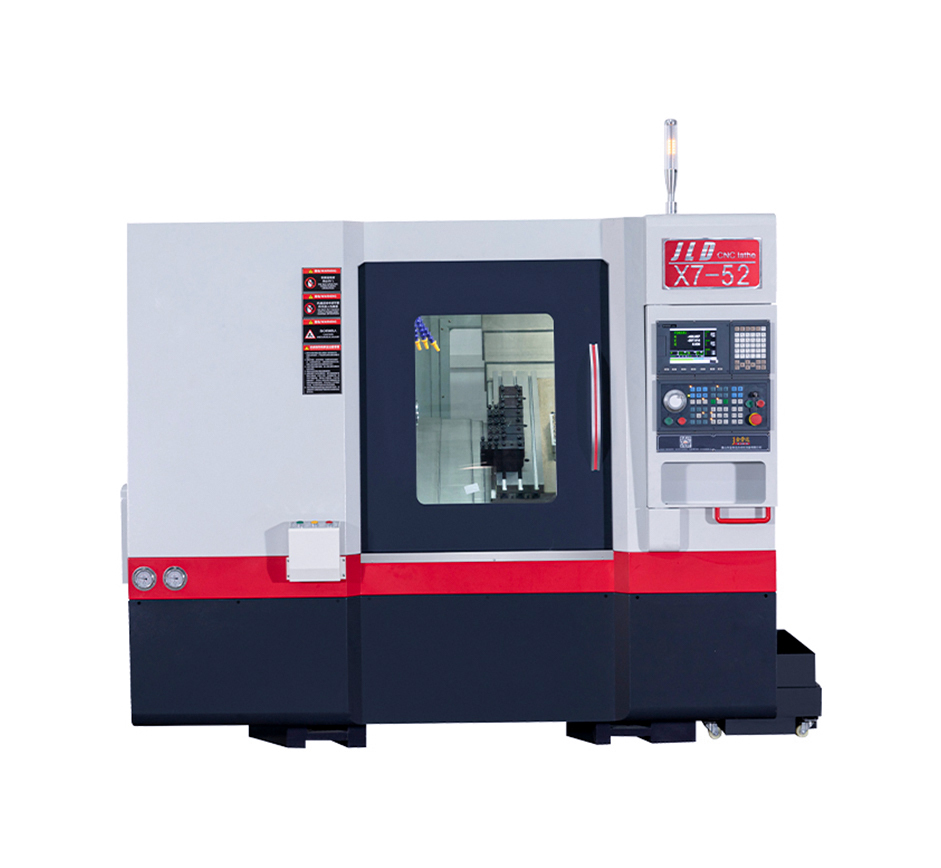

Name: LDS-52X7 Slant Bed CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-52X7
Availability: InStock
Rating: 5 (1 reviews)

Specification

The LDS-52X7 Slant Bed CNC Lathe offers a robust platform for demanding machining with precision, featuring a high-rigidity design. Trusted by cnc lathe machine manufacturers and industrial cnc machine users requiring heavy-duty turning.

LDS-52X7 Slant Bed CNC Lathe Parameters
Serial number	Item		Unit	52X7
1	Barrel spindle unit through hole		mm	Φ66
2	Maximum swing diameter over bed		mm	Φ260
3	Spindle	Spindle nose type		A2-6
4		Spindle nose type		A2-6
5		Maximum spindle speed	r/min	4000
6		Spindle set speed	r/min	1-3000
7		Maximum bar through-hole diameter	mm	Φ51
8	Tool mounting type		mm	Linear tool arrangement
9	Height from linear tool to spindle center		mm	80
10	Lead screw and guideway protection method			Semi-protected
11	Height from spindle center to floor		mm	1230
12	Lathe bed inclination		Degree	35°
13	X-axis effective travel		mm	1050
14	Z-axis effective travel		mm	450
15	X/Z axis rapid traverse setting speed		mm	24/30
16	X-axis lead screw diameter & pitch		mm	3208
17	Z-axis lead screw diameter & pitch		mm	3210
18	X-axis linear guideways		mm	30
19	Z-axis linear guideways		mm	30
20	Overall dimensions (L×W×H )		mm	240018601930
21	Net weight		KG	3200
22	Roundness of machined workpiece		mm	0.003
23	Machining accuracy		mm	0.005
24	Cylindricity of machined workpiece		mm	0.008/200
25	X/Z-axis repeat positioning accuracy		mm	0.005
26	X/Z-axis absolute positioning accuracy		mm	0.005
27	Accuracy class of guideways		mm	H
28				C3
29				≤0.015
30				0.0025
31	Accuracy class of lead screw		mm	C3
32	Collet taper runout		mm	≤0.015
33	Spindle radial runout		mm	0.0025

Description

Functional Positioning for Precision Turning Applications
The LDS-52X7 Slant Bed CNC Lathe caters specifically to manufacturing environments that demand high stability and precision in heavy-duty turning operations. This machine targets engineers and production managers within sectors requiring reliable large-diameter workpiece machining. As a product from leading cnc lathe machine manufacturer Jinlaoda, it supports high-volume production workflows where consistent, accurate component fabrication reduces defects and downtime. The slant bed design ensures efficient chip evacuation, enhancing continuous operation capabilities expected by industrial cnc machine users who value durability and throughput.

Technical Features and Measurable Specifications
Engineered with a cast iron bed featuring optimized ribbing, the LDS-52X7 delivers superior rigidity and vibration damping essential to maintain tight tolerances. Powered by a high-precision sleeve spindle and premium ball screws combined with linear guides, it achieves positioning accuracies as precise as 0.005 mm. The machine supports a maximum swing diameter over bed of Φ260 mm and rapid traverse rates of up to 30 mm/min on the Z-axis, suitable for complex parts with intricate contours. The turret structure enables quick tool changes, allowing multi-tool configurations adaptable to demanding machining cycles typical for an advanced industrial cnc machine implementation.

Industry Applications and Production Value
The LDS-52X7 excels in heavy machinery, automotive, aerospace, and mold sectors where large components require strict dimensional stability and surface finish quality. Its capability to handle large-diameter shafts during validation and prototype phases streamlines time-to-market while maintaining production reproducibility. Integration into existing CNC setups by cnc machine suppliers benefits enterprises aiming to upgrade or expand capacity without compromising process flexibility. This slant bed lathe’s robust construction and multi-tool turret make it suitable for continuous, multi-operation turning campaigns, ensuring optimized resource utilization in precision part manufacturing.

Product Advantages

Structural and Design Advantages for Enhanced Stability
The LDS-52X7 features a slant bed configuration with a cast iron base reinforced by optimized ribbing, significantly improving vibration damping and machine stability under heavy load. This structural design enhances the life cycle and accuracy of the lathe, aligning with industrial standards expected from reputable cnc lathe machine manufacturers. The turret mechanism supports multiple tools configured for rapid indexing, boosting machining efficiency in complex turning applications. High-grade ball screws and linear guides further contribute to the overall mechanical integrity, making it a preferred option among cnc machine suppliers for delivering precise and reliable equipment.

Operational Performance and User-Centric Value
Designed for ease of integration and operation within demanding manufacturing processes, the LDS-52X7 offers high torque capacity and stable spindle performance critical for heavy metal removal tasks. The rapid tool change capability reduces cycle times, enhancing throughput and operational efficiency for users of industrial cnc machines. Maintenance procedures are streamlined, minimizing downtime and facilitating consistent high-accuracy output. By providing reliable repeatability and robust usability, this lathe supports engineering teams in achieving competitive manufacturing precision and cost-effective production runs.

Use Scenarios

Large-Diameter Shaft Turning in Heavy Machinery Fabrication
In heavy machinery production environments, the LDS-52X7 functions as a core machining asset, enabling precision turning of large-diameter shafts and components vital for structural integrity. The robust slant bed design and high-rigidity construction accommodate heavy radial loads while maintaining tight geometric tolerances, which are essential for performance compliance and durability in final assemblies. This industrial cnc machine integrates seamlessly with heavy-duty toolpaths, facilitating batch production with rapid tool changes to meet strict manufacturing schedules in sectors like construction and industrial equipment manufacturing.

Prototyping and Pre-Production for Automotive and Aerospace Components
Within automotive and aerospace manufacturing environments, the LDS-52X7 supports development phases requiring high-precision and multi-tool machining capabilities. Its ability to handle complex turning operations with repeatability of 0.005 mm allows engineering teams to validate component designs and surface finishes accurately before full-scale production. This platform’s high-speed spindle and large travel dimensions provide flexibility in material selection and part complexity while ensuring reliable integration with existing machining centers. As a strategic solution from leading cnc machine suppliers, it enables efficient prototyping workflows aligned with rigorous industry standards.

FAQ

What types of materials can the LDS-52X7 Slant Bed CNC Lathe machine handle?
The LDS-52X7 CNC lathe supports a variety of materials commonly used in industrial manufacturing, including metals such as steel, aluminum, and cast iron. Its rigidity and design enable high-precision machining of heavy-duty metal components, making it suitable for demanding applications in sectors requiring industrial CNC machines like automotive and aerospace.

Can the CNC lathe be customized to meet specific production requirements?
Yes, as a leading cnc lathe machine manufacturer, Jinlaoda offers flexible turret configurations and tool setups for the LDS-52X7 model. Customers can request customization to optimize machining processes and tool arrangements, ensuring the machine aligns with complex and diverse turning tasks in high-volume production settings.

What are the installation and space requirements for the LDS-52X7 CNC lathe?
The LDS-52X7 has overall dimensions of 2400×1860×1930 mm and weighs approximately 3200 KG. It requires a stable floor with sufficient space for operation and maintenance. Proper installation must consider its 35° slant bed angle and 1230 mm spindle height to ensure optimal machining accuracy and operator access.

How should maintenance be performed on this CNC lathe to ensure longevity?
Regular maintenance for the LDS-52X7 includes checking the spindle condition, inspecting tool wear, and maintaining lubrication for ball screws and linear guides. Jinlaoda recommends scheduled servicing to preserve positioning accuracy and stability, ensuring the cnc machine suppliers meet reliability standards important for continuous heavy-duty use.
