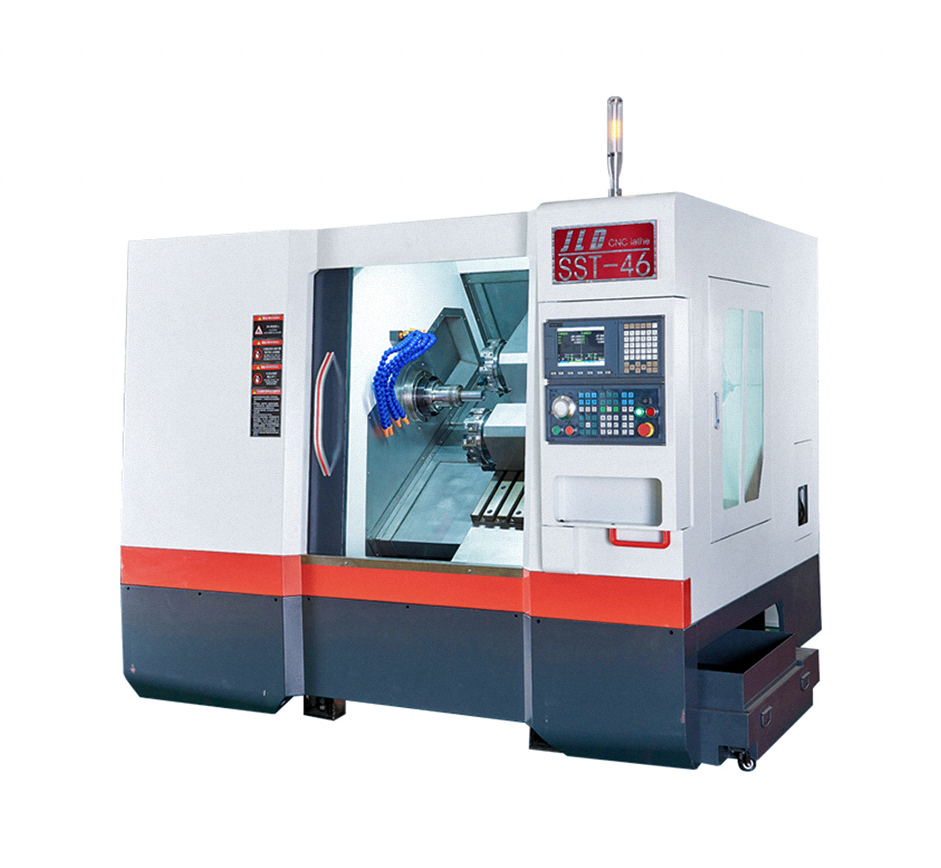

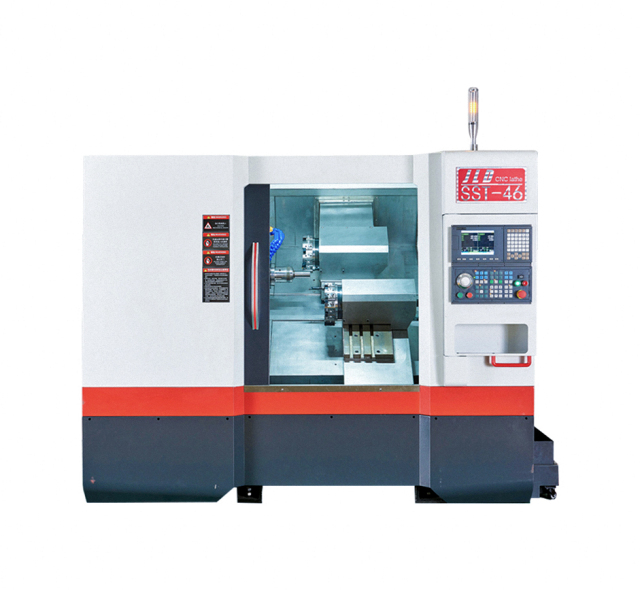

Name: LDS-46 52-SST Single-Spindle Double-Turret CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46 52-SST
Availability: InStock
Rating: 5 (1 reviews)

Specification

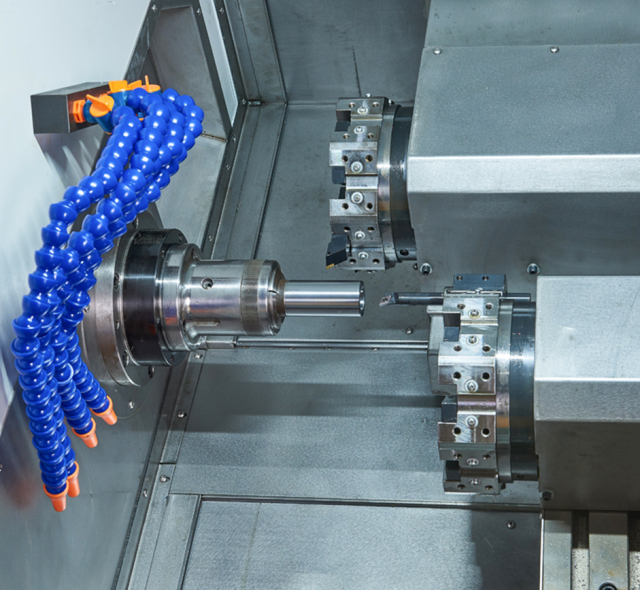

The core of this equipment is equipped with a high-rigidity spindle and two independent servo tool turrets. The dual servo tool turret can work synchronously or asynchronously, significantly reducing tool change waiting time and greatly improving processing efficiency. Servo drive ensures rapid and precise tool changing with high repeat positioning accuracy. Designed specifically for efficient turning of complex parts, it enables multiple processes to be completed in a single clamping, making it an ideal automation solution for enhancing production capacity and precision.

LDS-46 52-SST Single-Spindle Double-Turret CNC Lathe Parameters
Serial number	Item		Unit	46SST	52SST
1	Barrel spindle unit through hole		mm	Φ56	Φ66
2	Maximum swing diameter over bed		mm	Φ400
3	Spindle	Spindle nose type		A2-5	A2-6
4		Maximum spindle speed	r/min	5000	4000
5		Spindle set speed	r/min	1-4000	1-3000
6		Maximum bar through-hole diameter	mm	Φ45	Φ51
7	Tool mounting type		mm	Servo turret
8	Height from turret to spindle center		mm	63
9	Lead screw and guideway protection method			Full protection
10	Power head			No
11	Height from spindle center to floor		mm	1200
12	Lathe bed inclination		Degree	35°
13	X1-axis effective travel		mm	180
14	X2-axis effective travel		mm	220
15	Z1-axis effective travel		mm	350
16	Z2-axis effective travel		mm
17	X/Z axis rapid traverse setting speed		mm	30
18	X-axis lead screw diameter & pitch		mm	3210
19	Z-axis lead screw diameter & pitch		mm	3210
20	Turret specification	Power turret model number	Tool position / pieces	63 Servo 8 stations
21		Square/round turret specifications	mm	□25*25、￠25
22		Turret center height	mm	63
23	X-axis linear guideways		mm	30
24	Z-axis linear guideways		mm	30
25	Overall dimensions (L×W×H )		mm	237519501800
26	Net weight		KG	4200
27	Roundness of machined workpiece		mm	0.005
28	Machining accuracy		mm	0.008/200
29	Cylindricity of machined workpiece		mm	0.005
30	X/Z-axis repeat positioning accuracy		mm	0.005
31	Accuracy class of guideways		mm	H
32	Accuracy class of lead screw		mm	C3
33	Collet taper runout		mm	≤0.015
34	Spindle radial runout			0.0025

Description

Precision and Efficiency with Dual Turrets
The Jinlaoda CNC lathe for sale is built with a single spindle and dual turret design, enabling the machining of parts with high efficiency and precision. This feature is ideal for various metal CNC machine applications, allowing operators to set up multiple tools simultaneously and reduce machining time. Whether working with alloys, metals, or composite materials, the lathe ensures consistent results across production runs. The advanced design enhances tool access and provides an effective solution for complex turning operations, making it a great choice for those seeking a high-performance turning CNC machine. With its robust construction, this machine is optimized for both high-speed operations and intricate part handling.

Compact Design with High Versatility
This desktop CNC machine offers exceptional versatility while maintaining a compact footprint, making it a suitable option for businesses with limited space. The combination of a single spindle with dual turrets allows for multiple machining operations without having to reposition the part, ensuring efficient use of time. The CNC lathe machine for sale supports a wide range of machining processes, from simple turning to complex multi-axis operations, ensuring flexibility for various industries. Ideal for metal CNC machine applications, this lathe offers professional-grade performance in a space-saving design, delivering reliability and accuracy even in smaller workshops or production lines.

User-Friendly Control System for Enhanced Productivity
The CNC lathe machine for sale features an easy-to-use control system that simplifies the programming and operation of the lathe. This allows for quick setup times and minimizes the learning curve for new users. Equipped with advanced technology, it supports multiple programming formats and integrates seamlessly with existing systems. The desktop CNC machine design incorporates efficient feedback mechanisms to ensure that operators are always informed of the machine’s status, helping to prevent errors and improve operational efficiency. For industries that demand high-volume production with consistent results, this turning CNC machine is an excellent addition to any workshop.

Product Advantages

High Efficiency with Dual Turrets
The CNC lathe for sale is equipped with dual turrets, a feature that significantly reduces tool change times and improves overall efficiency. By offering simultaneous tool usage, it minimizes downtime and enhances throughput in high-volume production. The ability to set up different tools on each turret allows for versatile machining without the need to stop and reset, making it ideal for metal CNC machine applications that require frequent tool changes.

Compact Yet Robust Design
Despite its compact size, the desktop CNC machine delivers robust performance. Its space-saving design is perfect for smaller workshops or businesses with limited space but needing industrial-level precision. The durable construction ensures that the machine can withstand long hours of operation without compromising on performance. The turning CNC machine is a valuable solution for users seeking high reliability and precision without the need for large equipment or excessive floor space.

Versatility Across Industries
The CNC lathe machine for sale offers great flexibility, allowing it to be used in various applications, from prototyping to full-scale production. Whether working with aluminum, stainless steel, or other metals, the machine is designed to handle a wide range of materials. Its advanced features make it suitable for industries such as aerospace, automotive, and medical device manufacturing, where high precision and reliability are critical for creating complex parts with tight tolerances. This adaptability makes it an excellent choice for metal CNC machine applications across multiple sectors.

Use Scenarios

Efficient Production for Small to Medium Parts
The desktop CNC machine is ideal for the production of small to medium-sized parts that require precise turning and milling operations. In industries such as automotive or aerospace, where small components must be produced with tight tolerances, the CNC lathe machine for sale offers a reliable and efficient solution. With its dual turret design, it allows for quicker setup times and seamless transitions between machining tasks, making it perfect for batch production.

Prototype Development and Custom Manufacturing
For businesses focused on prototype development or custom parts manufacturing, the CNC lathe for sale provides the flexibility and accuracy needed for intricate designs. The machine supports multiple machining operations, allowing users to produce high-precision parts without needing separate machines for each task. This makes it an excellent choice for creating complex, customized components for industries such as robotics or medical devices.

High-Speed Production for High-Volume Workflows
The turning CNC machine is designed for high-speed production environments, where time is critical, and efficiency is paramount. With its dual turrets and fast tool-changing capabilities, it can handle high-volume machining with minimal downtime. This feature makes it ideal for mass production runs where precision and speed are both required, ensuring that businesses can meet tight deadlines while maintaining quality standards. Its suitability for metal CNC machine applications in large-scale manufacturing settings further underscores its performance and versatility.

About Us

Founded with a commitment to delivering high-quality CNC solutions, Jinlaoda has been a key player in the industry, specializing in CNC lathe machines for sale that cater to both small and large-scale manufacturers. Our products are known for their durability, precision, and reliability, making us a trusted partner in industries such as automotive, aerospace, and medical device manufacturing. With years of experience and a focus on innovation, we provide our customers with state-of-the-art metal CNC machine technology that meets the demands of modern manufacturing.

Our research and development team is constantly pushing the boundaries of CNC technology to deliver machines that meet the needs of a wide range of industries. We offer a comprehensive suite of services, from design and prototyping to full-scale production and after-sales support. At Jinlaoda, we understand the importance of reliable machinery in achieving production goals, and we are dedicated to providing our clients with the best possible equipment. Whether you are a small business looking for a desktop CNC machine or a large corporation in need of high-efficiency solutions, we have the expertise and equipment to help you succeed.

FAQ

What materials can the Jinlaoda single spindle CNC lathe machine handle?
The Jinlaoda CNC lathe machine is capable of processing a variety of metals, including aluminum, steel, and titanium. Its robust design and precision tooling make it suitable for industries requiring tight tolerances in metal cutting CNC machine applications.

Is customization available for the desktop CNC cutting machine to fit specific production needs?
Yes, as a leading cnc cutting machine manufacturer, Jinlaoda offers customization options to meet varied production requirements. Customers can work directly with the engineering team to adjust specifications within the machine’s operational scope to optimize output.

How is the Jinlaoda CNC lathe installed and maintained in a small workshop setting?
Installation requires a stable desktop or workspace with sufficient load capacity to support the 4200 kg machine. Routine maintenance includes lubrication of guideways, checking spindle runout, and ensuring full protection of lead screws to maintain precision. The user-friendly control system assists in smooth operation.

What advantages does Jinlaoda offer as a CNC lathe manufacturer for industrial buyers?
Guangdong Jinlaoda CNC Machine Tool Co., Ltd. provides direct control over production, ensuring consistent quality and reliability. Their high-rigidity spindle and dual turret design optimize throughput, making it a trusted source in the cnc lathe manufacturer sector for high-precision metal cutting CNC machines.

Order your CNC lathe for sale today and elevate your manufacturing efficiency!
